54 12 003 Adjusting glass slide/tilt sunroof lid: Adjustment

• 00 9 315
• 00 9 341

Close glass sunroof lid (zero position).

Ideal adjustment:

• Distance:
  • Distance (A) between lid and roof at front and rear must be the same.
  • Slide in special tool 00 9 341 between seal and lid. This check (sliding in and pulling out the special tool) must be subject to tightness.

• Height:
  • Front - flush to 1 mm deeper
  • Rear - flush to 1 mm higher

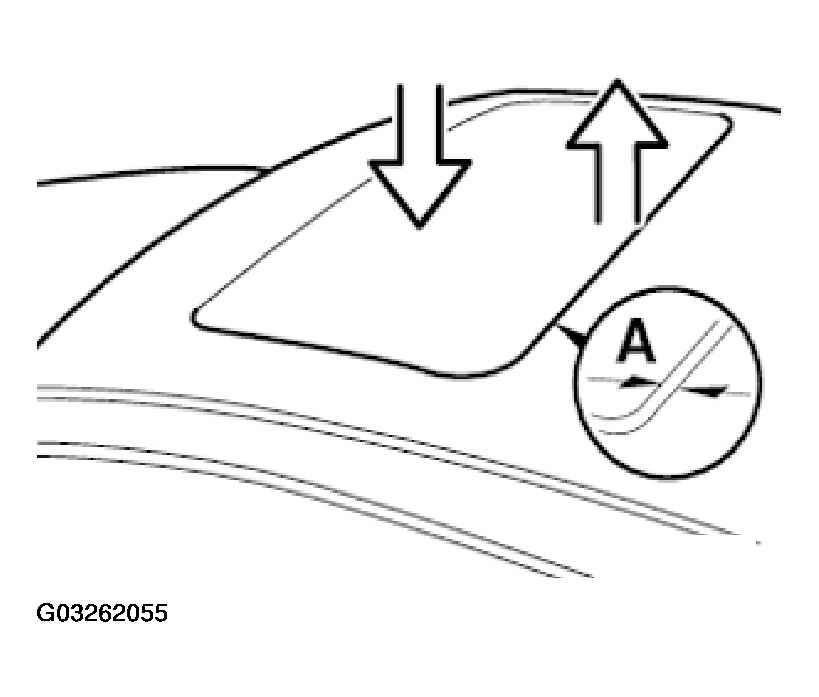

Fig 1: Locating Distance (A) Between Lid And Roof

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment of glass slide/tilt sunroof lid:

Remove Gaiter  on left and right.

Close sunroof lid again (zero position).

Slacken screws (1) on left/right so that sunroof lid (2) can still just be adjusted.

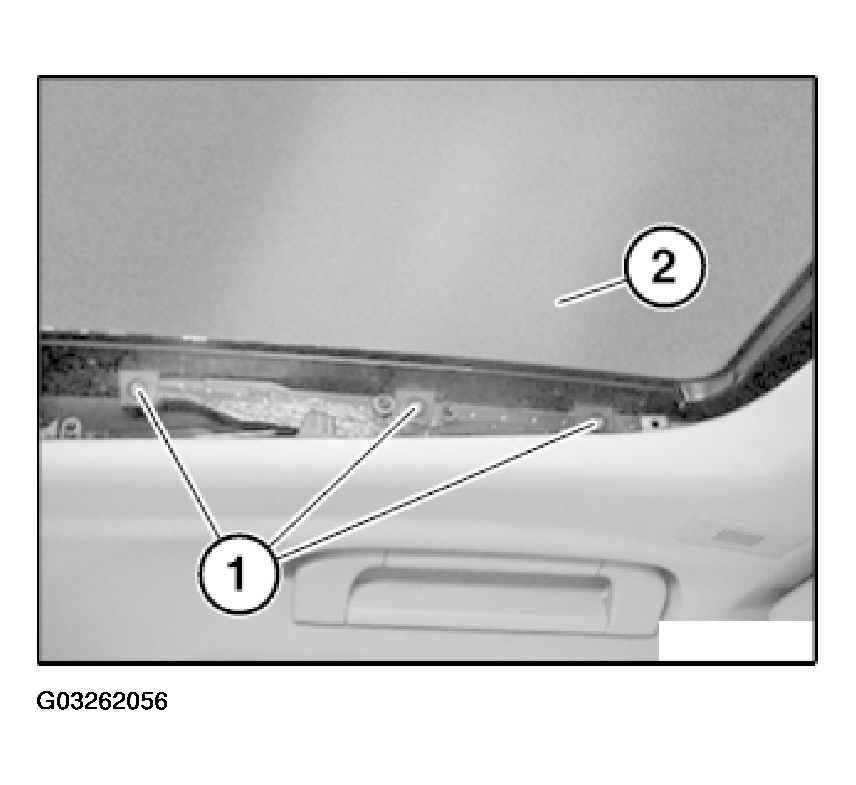

Fig 2: Slackening Screws On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment:

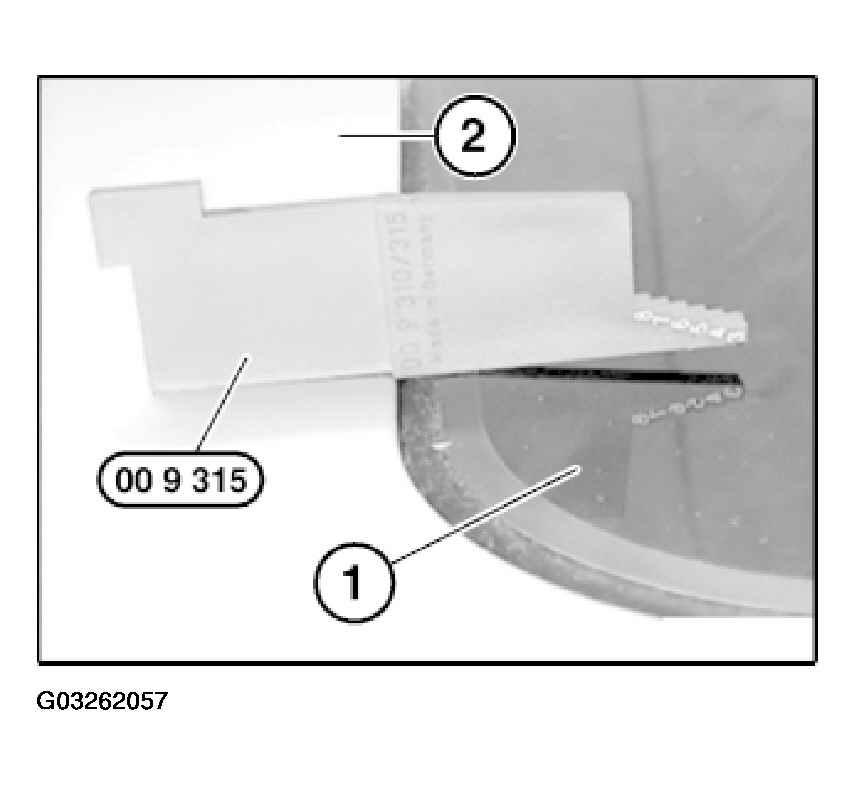

Adjust height of sunroof lid (1) to roof (2) with special tool 00 9 315 (gap wedge).

Press sunroof lid at front and rear up or down until ideal position is reached.

Fig 3: Adjusting Height Of Sunroof Lid To Roof

Courtesy of BMW OF NORTH AMERICA, INC.

Distance setting:

Slide sunroof lid towards front/rear until ideal position is obtained.

When ideal position is obtained:

• Tighten screws (1)

  Tightening torque, see 54 12 2AZ in SLIDE/TILT ROOF & CONVERTIBLE TOP - TIGHTENING TORQUES .

• Check function and adjustment of glass sunroof lid (2).

Fig 4: Checking Function And Adjustment Of Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.
