51 24 050 Removing and installing/replacing lock element (lock cylinder) for rear lid

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANEL FOR REAR LID .

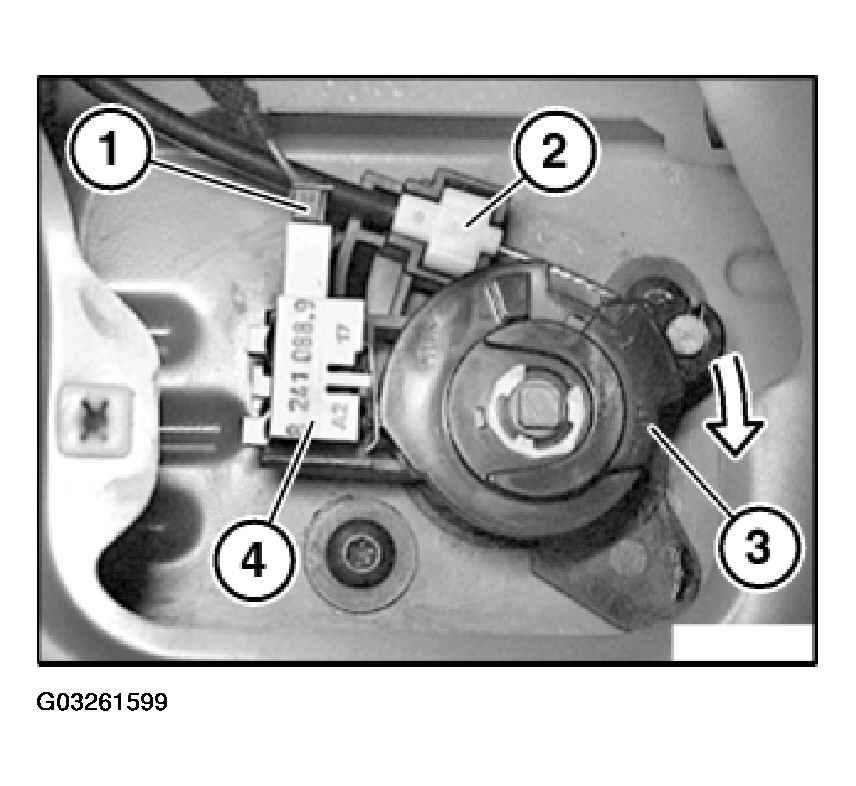

Disconnect plug connection (1) on microswitch.

Detach Bowden cable (2) from holders.

Move lock actuator (3) in direction of arrow up to end stop.

Fig 1: Moving Lock Actuator In Direction Of Arrow Up To End Stop

G03261599

Courtesy of BMW OF NORTH AMERICA, INC.

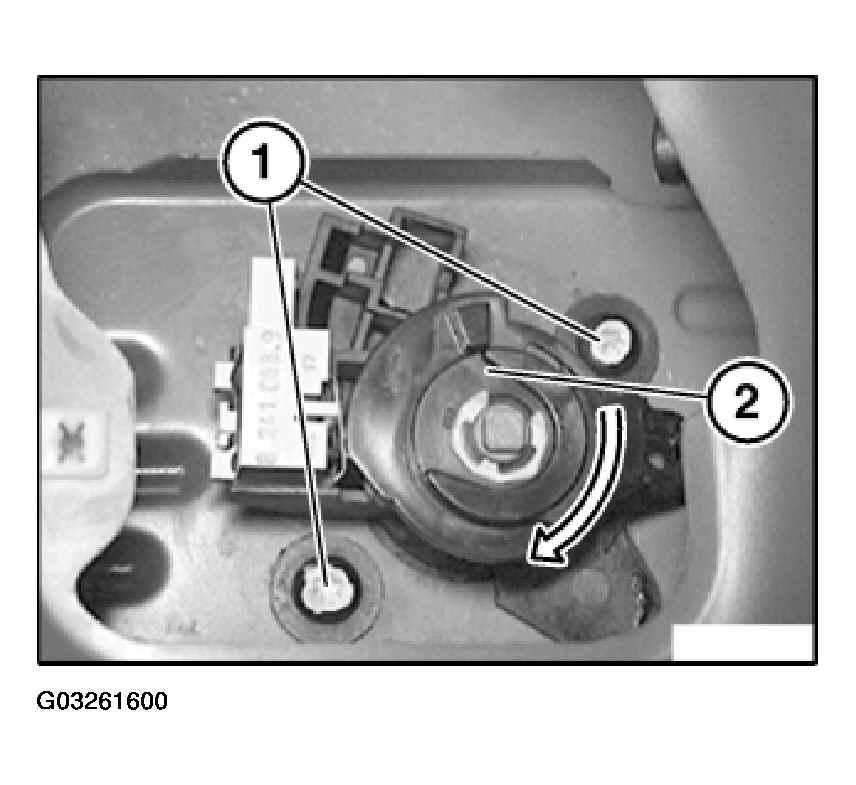

Release screws (1) and turn complete lock (2) in direction of arrow.

Fig 2: Removing Screws And Turning Complete Lock

G03261600

Courtesy of BMW OF NORTH AMERICA, INC.

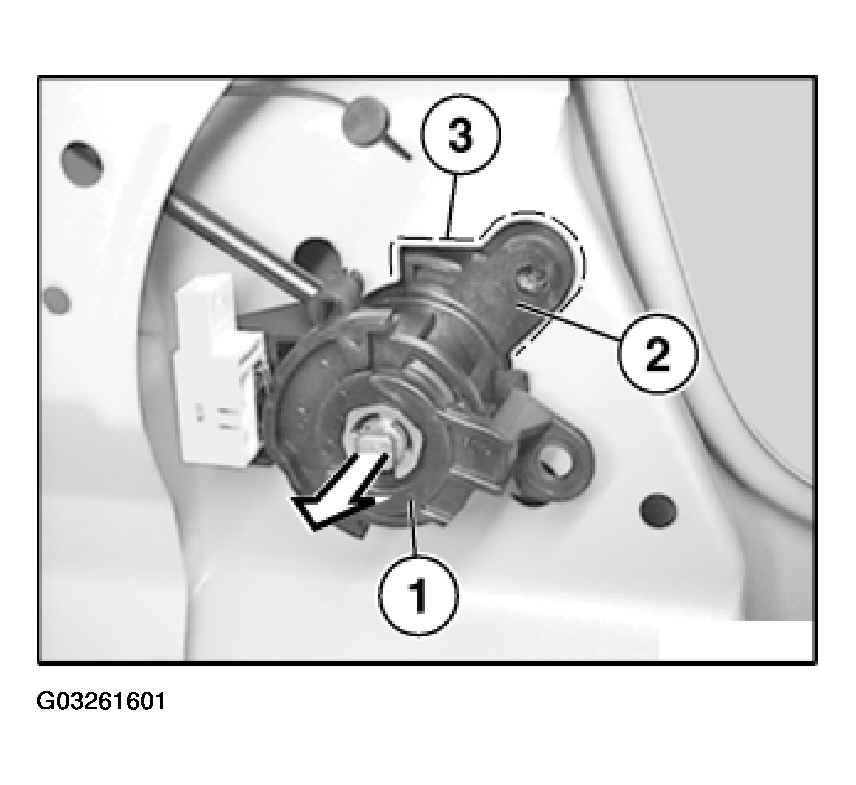

Turn lock (1) to right until guide (2) is located in metal cutout (3).

Remove lock in direction of arrow.

Fig 3: Removing Lock

G03261601

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with trunk lid open.

Only replace:

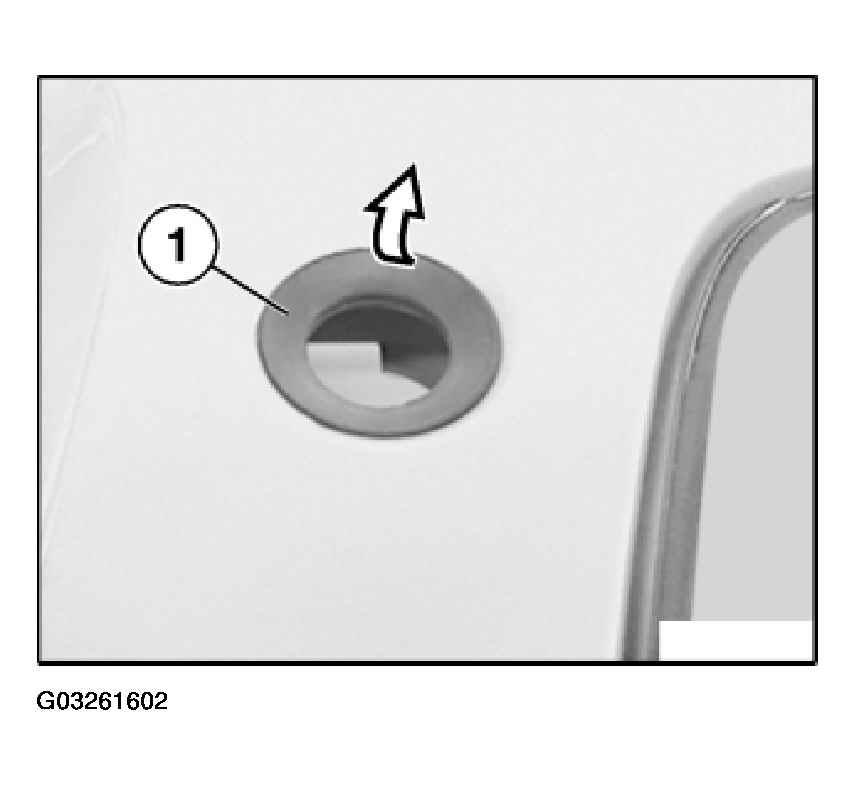

Pull off rubber grommet (1).

Fig 4: Removing Rubber Grommet

G03261602

Courtesy of BMW OF NORTH AMERICA, INC.
