51 43 201 Removing and installing/replacing panel for roof pillar at front (A-pillar), left or right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow SAFETY INSTRUCTIONS for working on cars with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

Detach mucket (1) in area of panel (2).

Unclip protective cap (3) and remove.

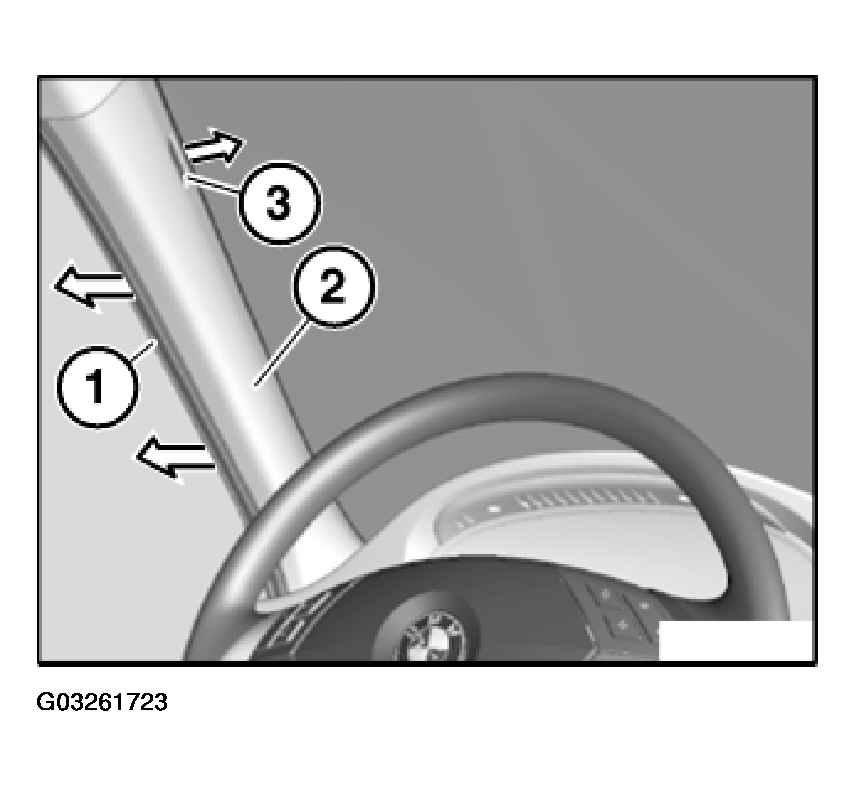

Fig 1: Releasing Mucket (1) In Area Of Trim For Front Roof Pillar (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque see 2AZ in 51 43 SIDE TRIM PANEL WITH ARMRESTS .

Unclip trim for front roof pillar (2) from mounting point (3).

Feed trim for front roof pillar (2) out of instrument panel trim (4) and remove.

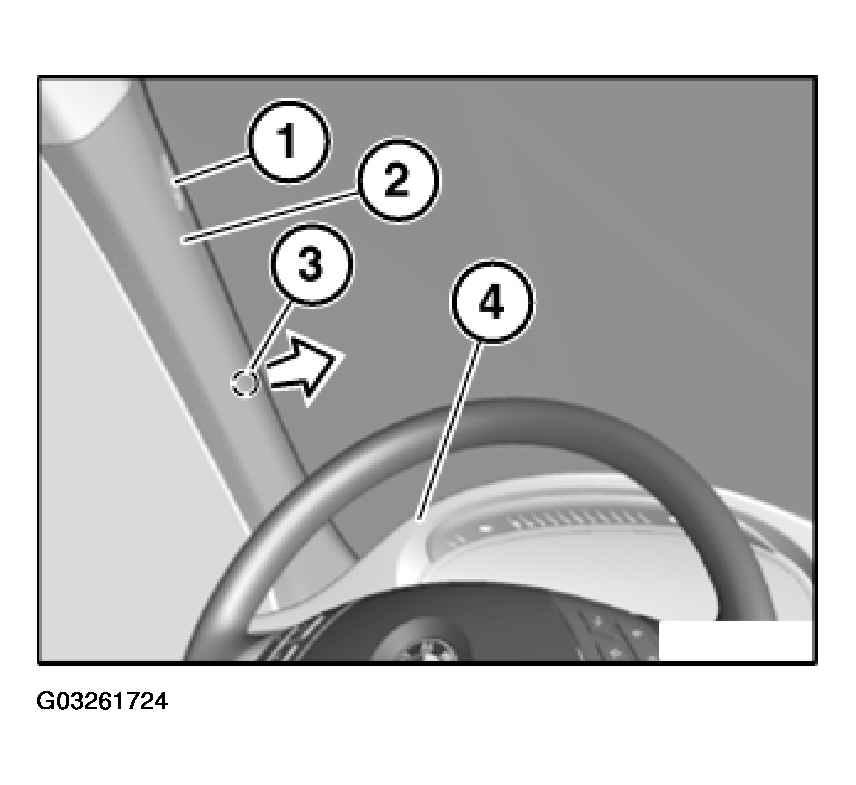

Fig 2: Removing Trim For Front Roof Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, lever out clip (1) remaining in bore.

If necessary, replace faulty clip (1).

Make sure guide (3) of trim for front roof pillar (2) are correctly seated in associated mounting.

Position trim for front roof pillar (2) preassembled with clip (1) on associated bore and clip into place.

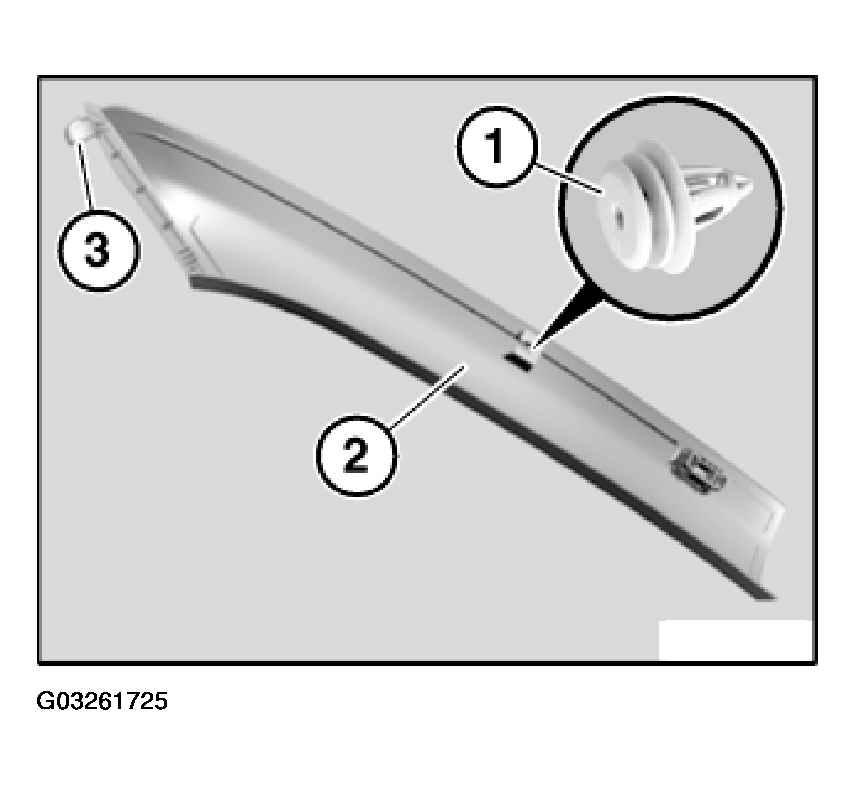

Fig 3: Positioning Trim For Front Roof Pillar

Courtesy of BMW OF NORTH AMERICA, INC.
