32 21 151 Replacing left or right tie rod
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front wheel. See WHEEL AND TIRES - REPAIR INSTRUCTIONS .
After installation:
- Perform Chassis Alignment Check .
- Carry out Steering Angle Sensor Adjustment/Adjustment For Active Front Steering .

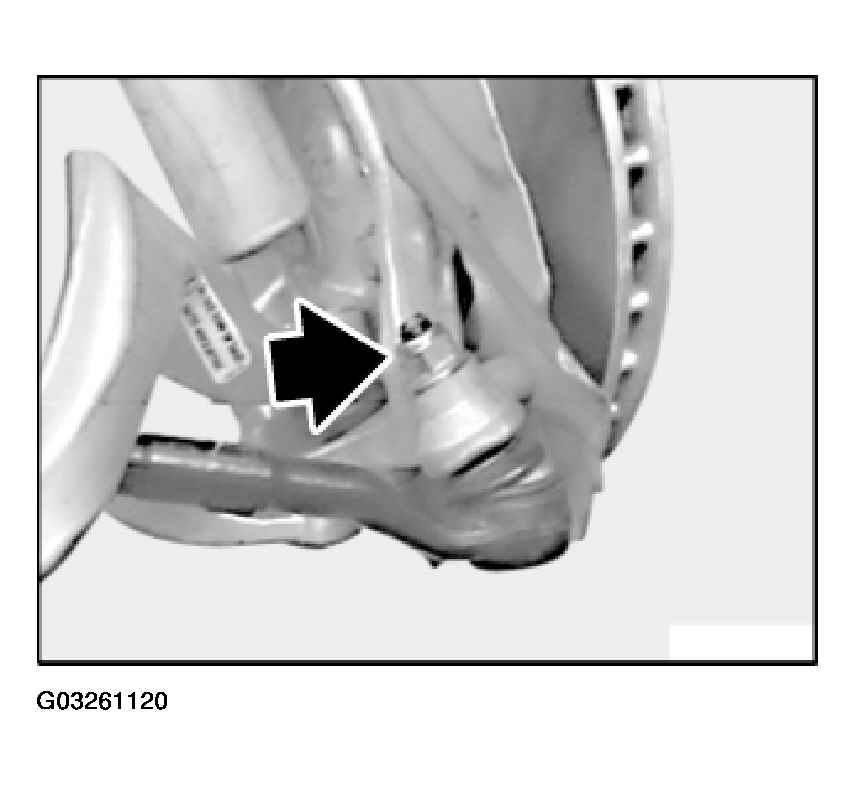

Release nut; if necessary, grip brace at Torx socket.
Remove tie rod end from swivel bearing.
Installation:
Keep journal on tie rod end and bore hole in swivel bearing clean and free from grease.
Replace self-locking nut.
Tightening torque, see 32 21 3AZ in WHEEL & TIRES - TIGHTENING TORQUES .

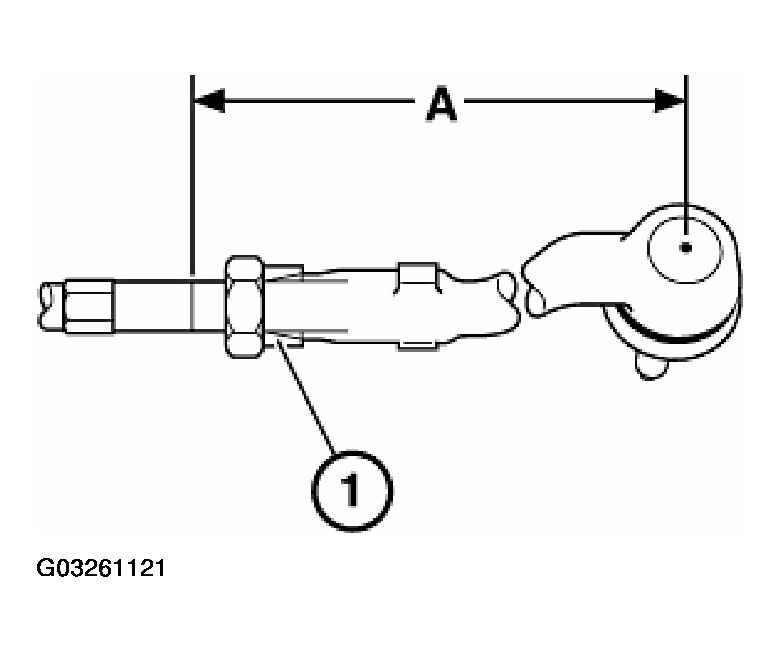

Determine measurement (A) to simplify following adjustment of front axle.
Release clamping nut.
Screw off tie rod end; if necessary, grip tie rod with open-end wrench.
Installation:
Check gaiter, replace if necessary.
Mount clamping ring (1).
Screw in tie rod end to measurement (A).
Tightening torque, see 32 21 5AZ in WHEEL & TIRES - TIGHTENING TORQUES .
