Removal & Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system. See 32 13 006 Bleeding Power Steering Unit .
- Check pipe connections for leaks
Necessary preliminary tasks:
- Draw off and dispose off hydraulic fluid from fluid reservoir
- M54, N52:
- Remove intake filter housing. See INTAKE SILENCER .

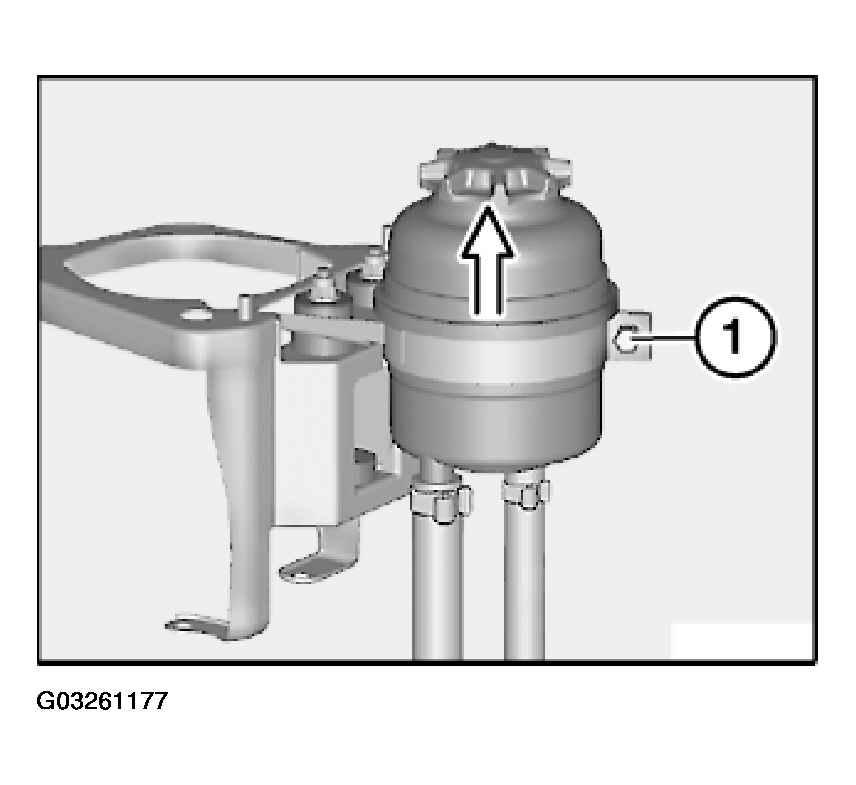

Release screw (1).
Tightening torque, see 32 41 9AZ in WHEEL & TIRES - TIGHTENING TORQUES .
NOTE:
If necessary, raise and/or turn fluid reservoir in order to gain better access to hose clamps.
Remove hose clamps if necessary with special tool 32 1 260.
Disconnect suction and return lines from fluid reservoir, check and if necessary replace.
Lift out fluid reservoir.
