32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
If necessary, remove front assembly underside protection. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .

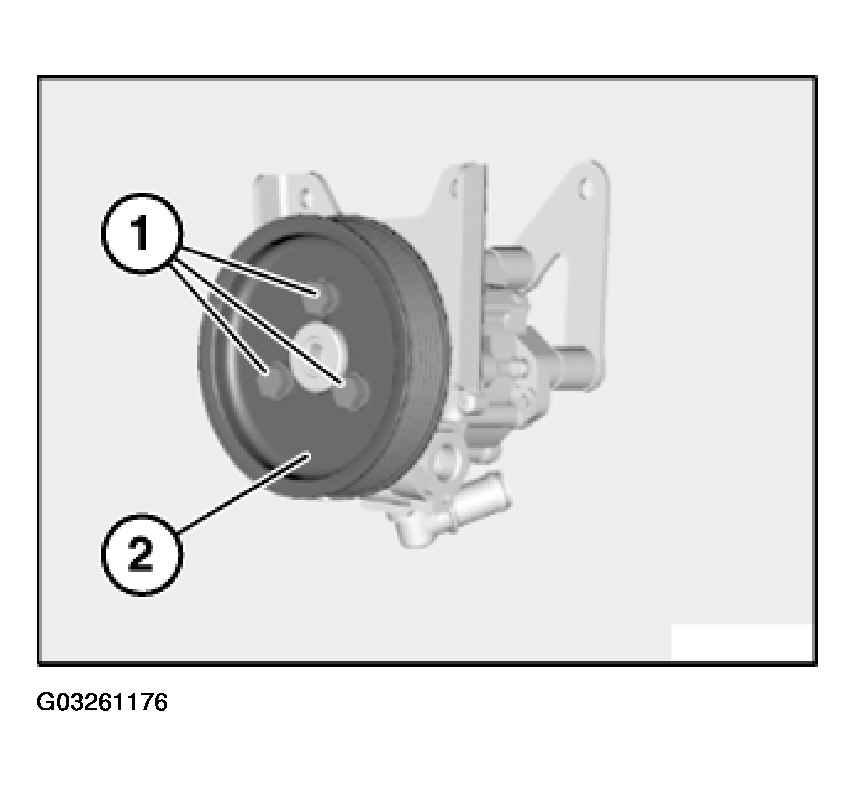

Slacken screws (1)
Slacken drive belt and remove from belt pulley (2).
Remove screws (1).
Tightening torque, see 32 41 14AZ in WHEEL & TIRES - TIGHTENING TORQUES .
Remove belt pulley (2) from power steering pump and remove towards bottom.
Installation:
Lettering on belt pulley (2) points forwards.
