65 12 355 Removing and installing/replacing fan (luggage compartment recess)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove spare wheel.

Take off cover for control units (1).

Installation:

Make sure cover for control units (1) is correctly seated on locating pins (2).

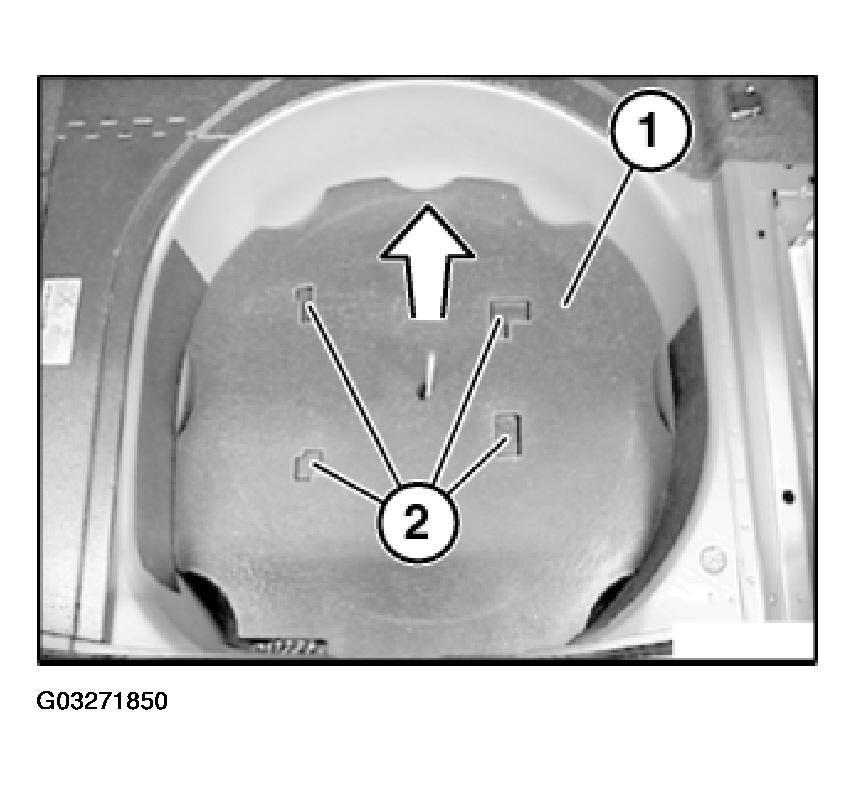

Fig 1: Identifying Locating Pins On Control Units Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations show removal from the E60.

Disconnect plug connection (1).

Lift fan (2) out of mounting for control units (3).

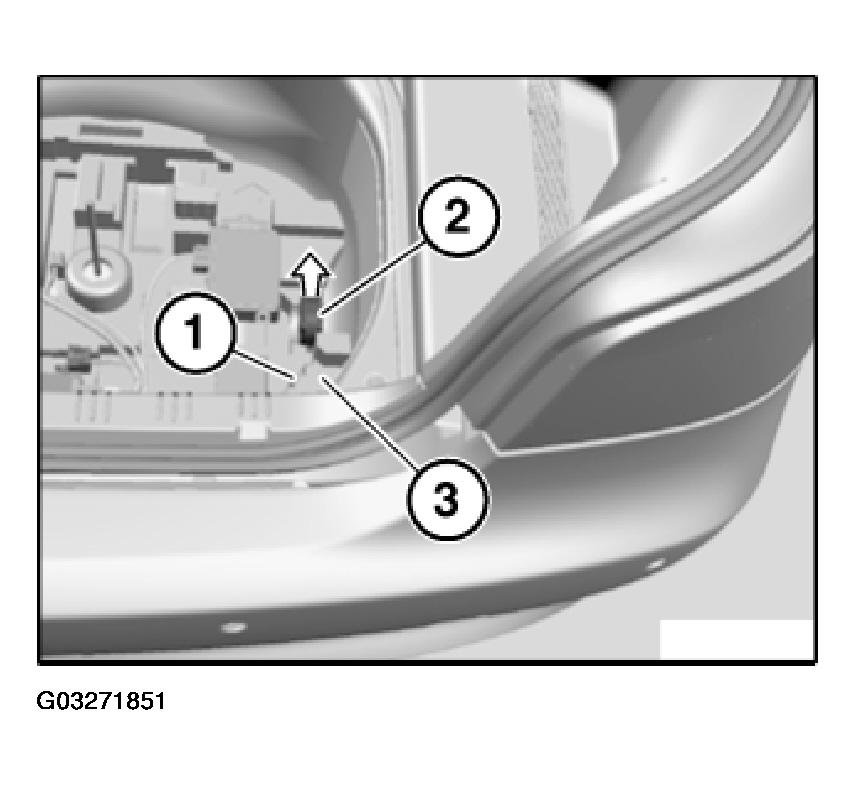

Fig 2: Removing Control Unit Fan

Courtesy of BMW OF NORTH AMERICA, INC.
