65 12 072 Removing and installing (replacing) amplifier (Top hi-fi system)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary Preliminary Tasks:

Partially remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING / LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS .

Unlock plug connections (1) and disconnect.

Pull out retaining plates (2) in direction of arrow.

Installation:

Make retaining plates (2) are correctly seated.

Remove amplifier (3) from holder (4).

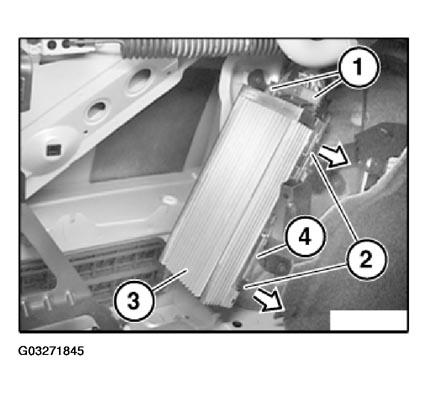

Fig 1: Locating Retaining Plate For Top Hi-Fi System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
