65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For special tools, refer to MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 341

Lever speaker cover (1) with special tool 00 9 341 out of rear shelf (2).

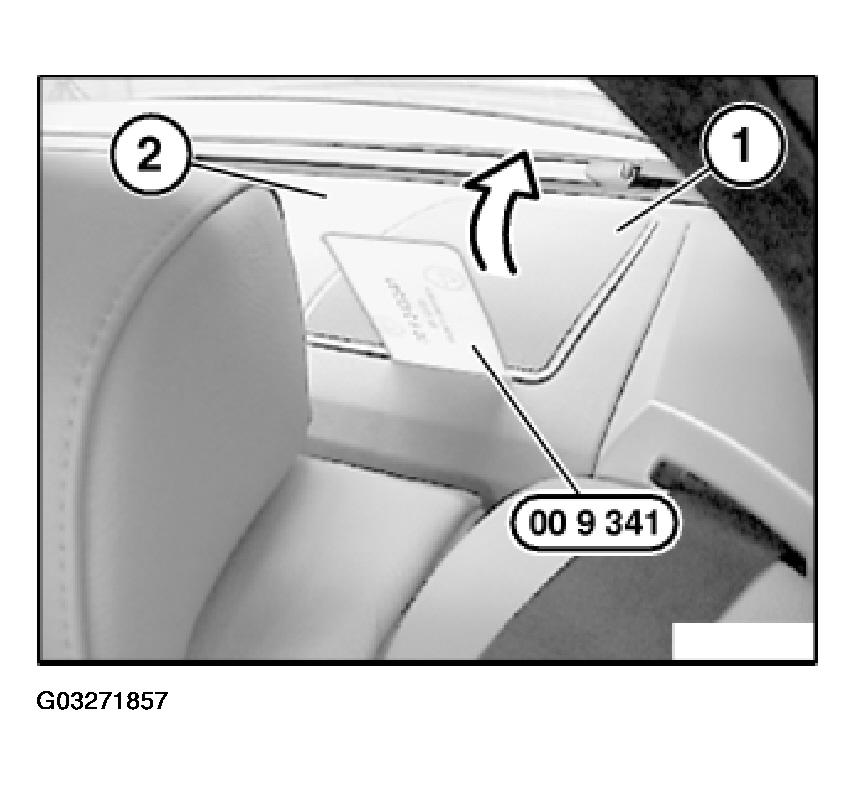

Fig 1: Removing Speaker Cover Using Disassembly Aid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) and locks (2) of speaker cover (3) must not be damaged.

Make sure speaker cover (3) is fully engaged.

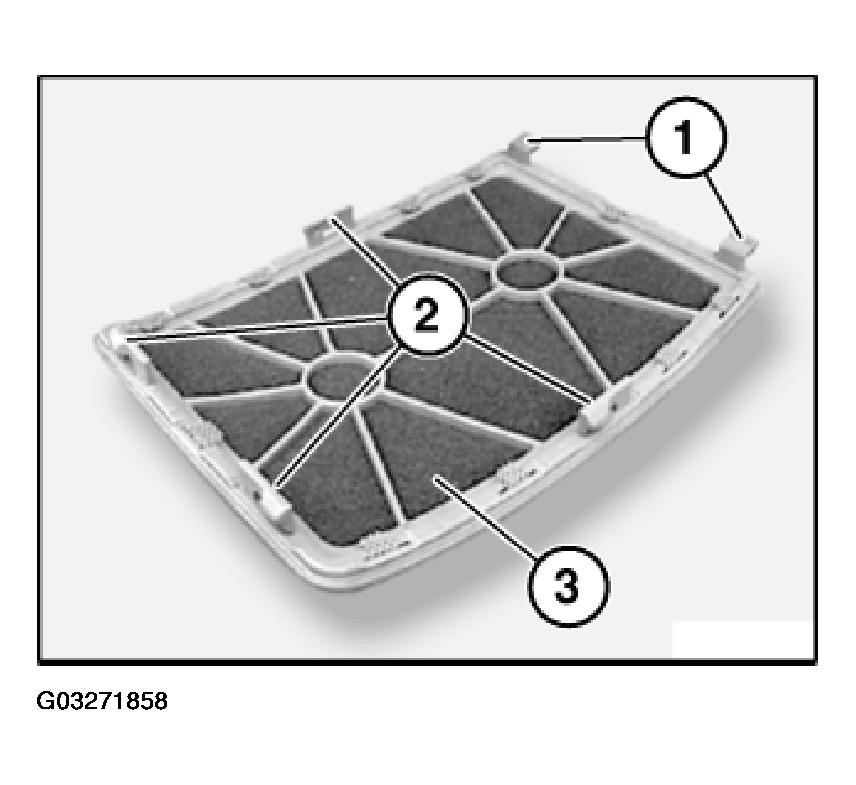

Fig 2: Identifying Speaker Cover Lugs And Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove mid-range speaker (2) upwards from rear shelf (3).

Disconnect associated plug connection and remove mid-range speaker (2).

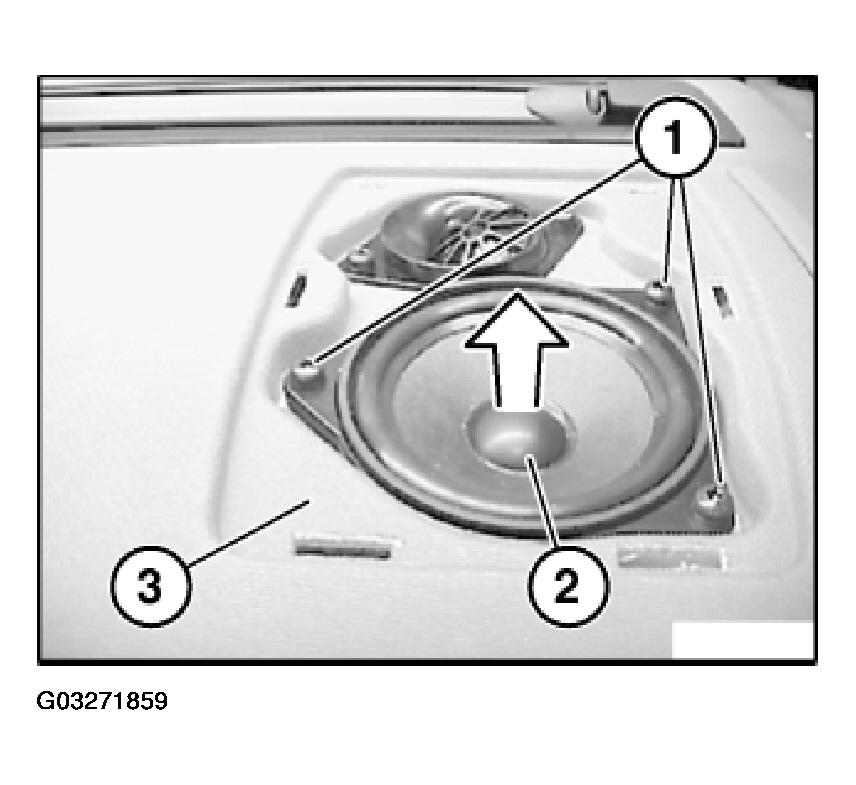

Fig 3: View Of Mid-Range Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
