65 13 050 Removing and installing/replacing speaker (tweeter, front door)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Detach cover on door window frame in front area. Refer to 51 32 160 REMOVING AND INSTALLING/REPLACING HOUSING COVER ON INNER LEFT OR RIGHT DOOR WINDOW FRAME .

NOTE: For purposes of clarity, illustration shows cover removed on door window frame.

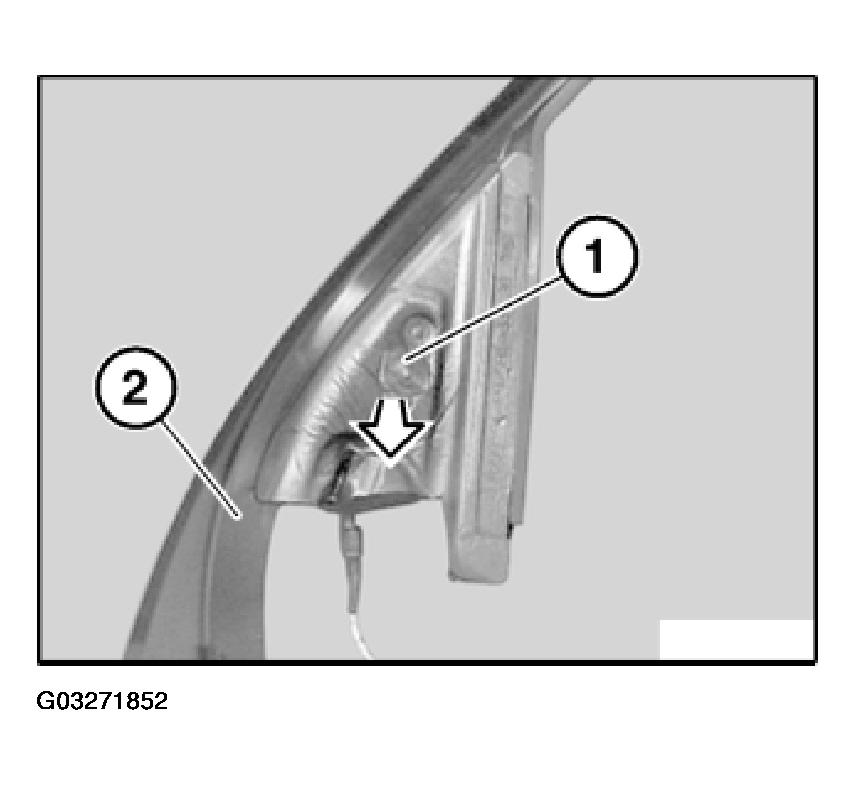

Remove foam wedge (1) from cover on door window frame (2).

Fig 1: Locating Foam Wedge In Door Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

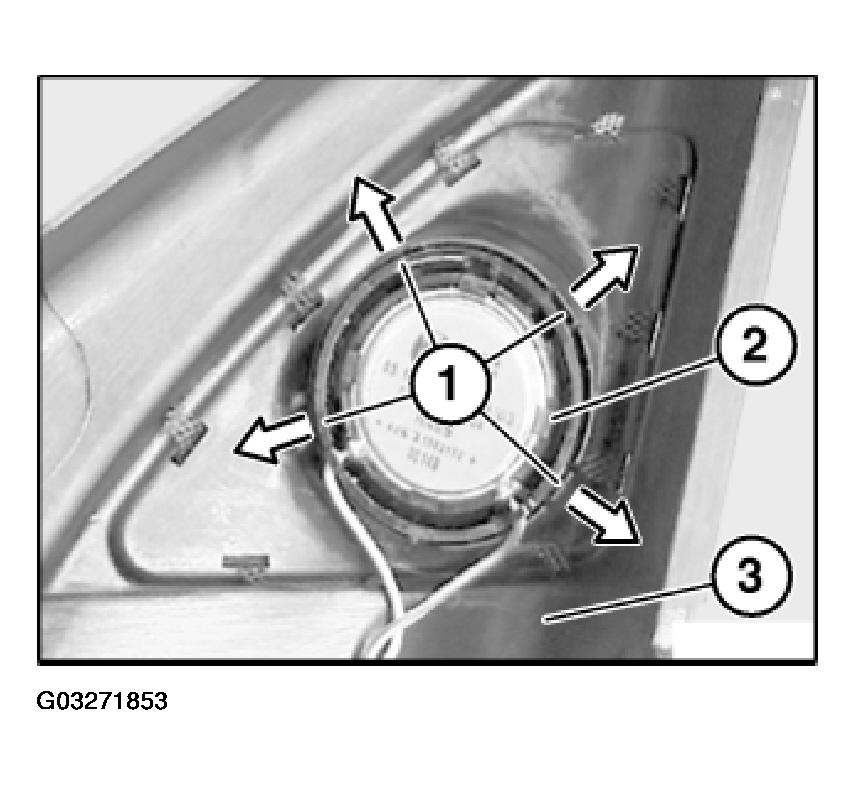

Unlock catches (1) and remove speaker (2) from cover on door window frame (3).

Fig 2: Identifying Door Window Frame Speaker Catches

Courtesy of BMW OF NORTH AMERICA, INC.
