52 16 023 Removing and installing/replacing adjusting unit for thigh support on left or right front seat

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

Move thigh support forwards as far as possible.

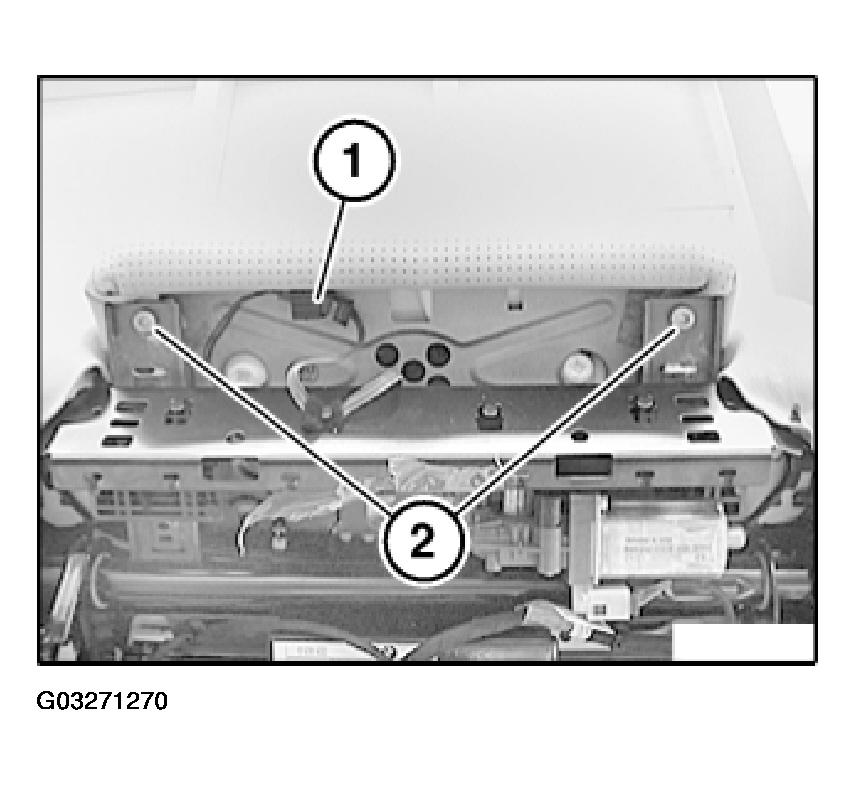

Unfasten plug connection (1) and disconnect.

Release screws (2).

Installation:

Insert screws (2) with Loctite.

Fig 1: Locating Thigh Support Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

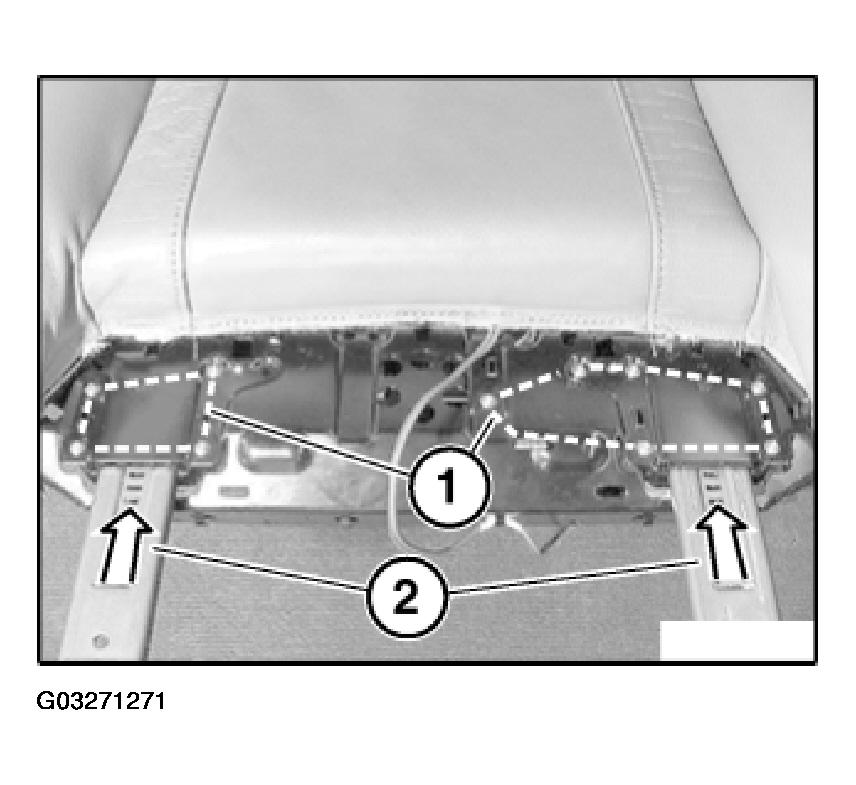

Release screws in areas (1).

Feed out adjusting unit (2) complete with drive in direction of arrow and remove.

Fig 2: View Of Adjusting Unit Complete With Drive

Courtesy of BMW OF NORTH AMERICA, INC.
