52 17 380 Removing and installing/replacing head restraint mount on left or right front seat (comfort)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove head restraint. Refer to 52 17 390 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINT (COMFORT) .
Remove both rear panels on front seat backrest. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

Detach retaining points (1).

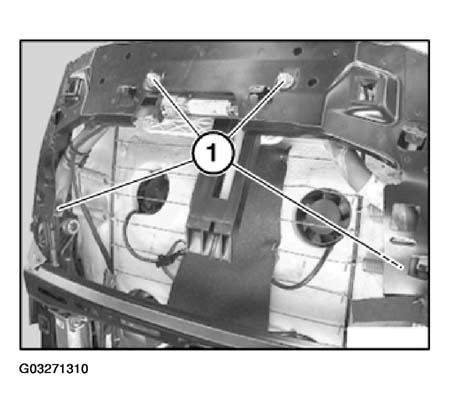

Fig 1: View Of Retaining Points Of Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable clip (1).

Disconnect plug connections (2).

Feed out AKS carrier (3) towards bottom.

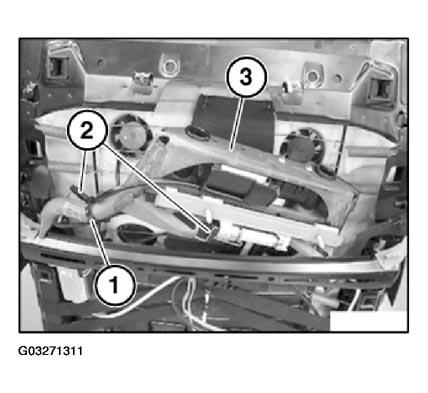

Fig 2: Locating Cable Clip On AKS Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Guide pins (2) of head restraint mount must engage in openings on AKS carrier.

Feed out head restraint mount (3) sideways.

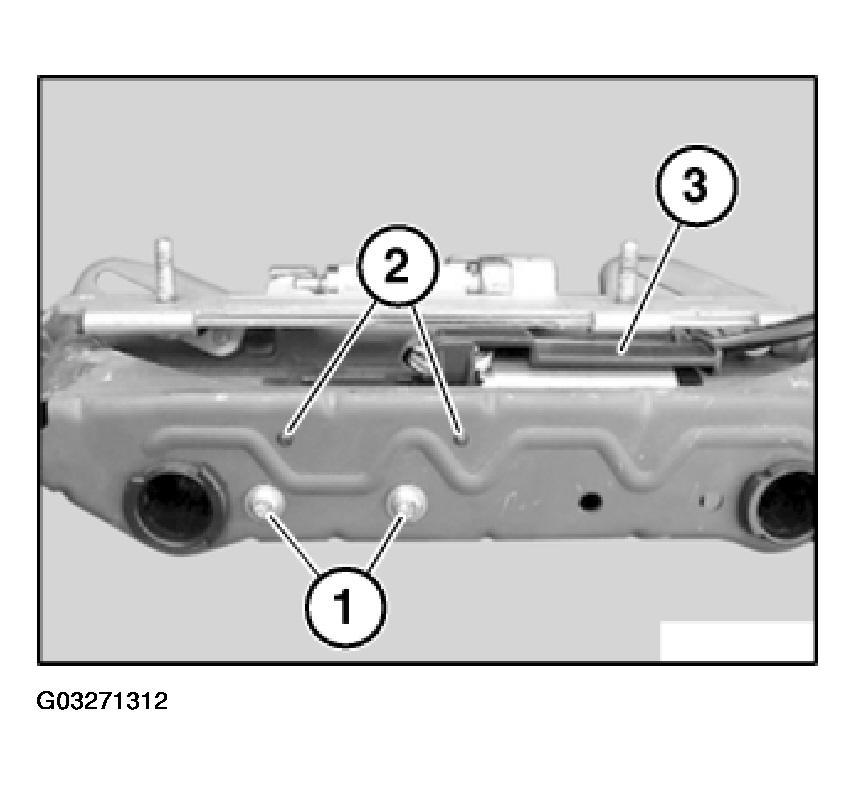

Fig 3: Identifying Guide Pins Of Head Restraint Mount

Courtesy of BMW OF NORTH AMERICA, INC.
