64 22 191 Removing and installing/replacing rear compartment fresh air grille
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, and 2008 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove insert in center console at rear bottom. See 51 16... REMOVING AND INSTALLING/REPLACING REAR INSERT (IN STORAGE COMPARTMENT) .

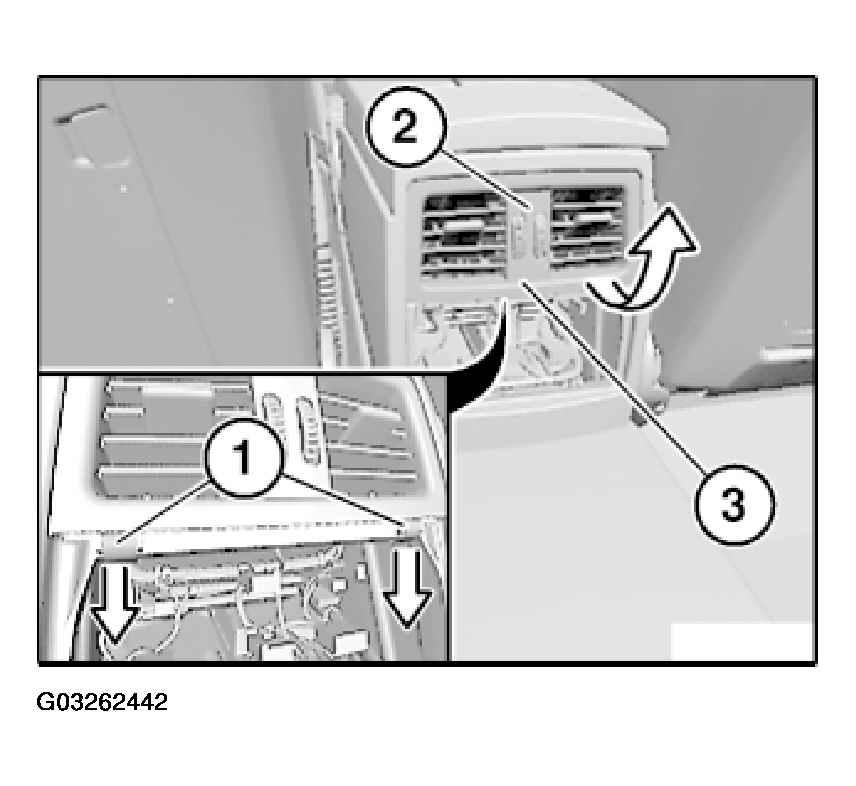

Detach clips (1) in direction of arrow.
Remove rear compartment fresh-air grill (2) in direction of arrow and unlock plug connection (3) underneath.
Installation:
Make sure rear compartment fresh-air grill (2) and clips (1) are correctly seated.
