17 21 500 Flushing oil cooler with lines (automatic transmission)

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

17 2 018
17 2 019 . See COOLING SYSTEM - SPECIAL TOOLS .

NOTE: Carry out the work steps listed when:
Fitting a new or replacement transmission
Flushing can only be carried out with the automatic transmission removed.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect the connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Feed open end of drain line into a suitable collection container.

Using oil collection unit, flush approx. 1 liter of transmission fluid through oil lines and oil cooler.

Reposition quick-release couplings.

Flush oil lines/oil cooler in opposite direction with approx. 1 liter of transmission fluid.

Disconnect quick-release couplings, remove adapters.

NOTE: Dispose of flushing oil properly; do not under any circumstances reuse it.

Arrangement of flushing device for transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

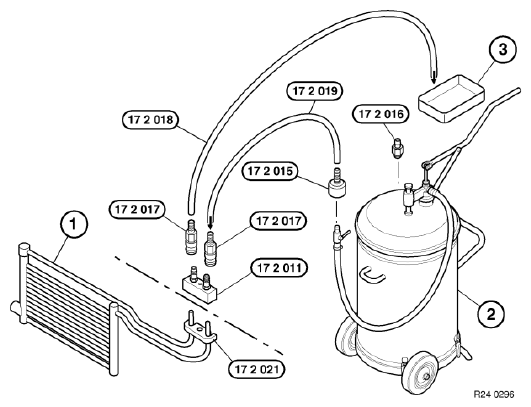

Fig 1: Arrangement Of Flushing Device For Transmissions A5S 310Z, A5S 560Z, A5S 360R/390R, A4S 200R, A5S 325Z, GA6HP26Z

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil collection unit
Oil drip tray
17 2 011 Adapter for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

17 2 021 Mounting plate for adapter 17 2 011 for transmissions A5S 325Z, GA6HP26Z

Arrangement of flushing device for transmission A4S 310R

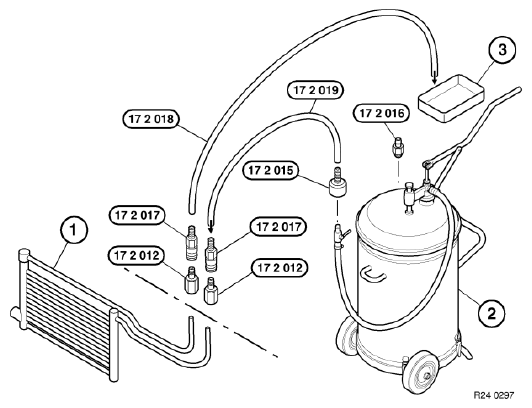

Fig 2: Arrangement Of Flushing Device For Transmission A4S 310R

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil collection unit
Oil drip tray
17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

Arrangement of flushing device for transmission A4S 300J

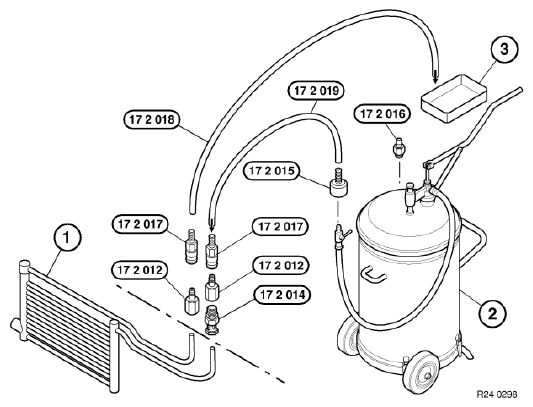

Fig 3: Arrangement Of Flushing Device For Transmission A4S 300J

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil collection unit
Oil drip tray
17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 014 Banjo bolt for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)

Arrangement of flushing device for transmission A5S 440Z

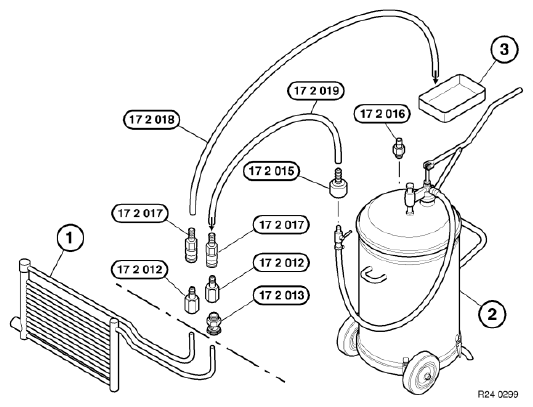

Fig 4: Arrangement Of Flushing Device For Transmission A5S 440Z

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil collection unit
Oil drip tray
17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1)

17 2 013 Banjo bolt for connecting transmission-side oil cooler lines (1)

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 018 Hose to oil drip tray (3)

17 2 019 Hose to oil collection unit (2)
