64 11 323 Replacing button caps for heater controls (up to 02/2007)

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Turn temperature selector wheel (1) to stop (arrow).

NOTE: Air volume control (2) has no limit position.

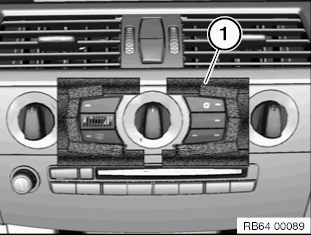

Tape button caps off with adhesive tape (1).

Fig 1: Taping Button Caps Off With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

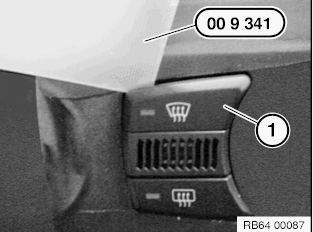

Lever button caps (1) off with special tool 00 9 341.

Fig 2: Levering Button Caps Off

Courtesy of BMW OF NORTH AMERICA, INC.

Remove adhesive tape.

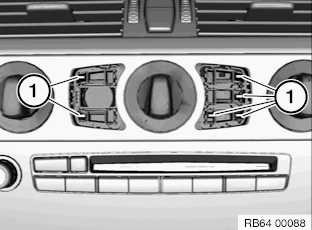

Pull light elements (1) out of the intake of the operating unit with a suitable tool.

Fig 3: Pulling Light Elements Out Of Intake Of Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the button caps (1) from the die cast tree (2).

Carefully deburr the button caps, if applicable.

Fig 4: Detaching Button Caps From Die Cast Tree

Courtesy of BMW OF NORTH AMERICA, INC.

Clip light elements (1) into the button caps (2) as shown.

Clip button caps into the operating unit.

Installation note:

The button cap for air recirculation function has two light elements.

Fig 5: Clipping Light Elements Into Button Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
