54 13 103 Aligning the rear water channel

WARNING: This page is about a different car, the 2010 BMW 535xi, 2009 BMW 535xi, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Press water channel (1) upward at the marked points by pressing firmly with your thumb.

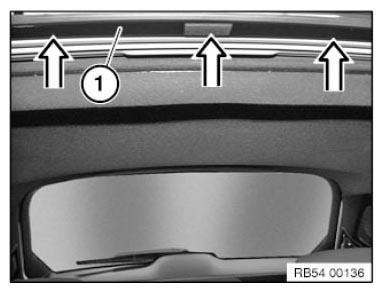

Fig 1: Pressing Water Channel
G06979611Courtesy of BMW OF NORTH AMERICA, INC.
