Second Check

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition hook wrench. Introduce a force with hook wrench (1) in direction shown until torque is obtained. See Fig 1 .
  2. If red LED flashes, joint must be replaced. If green LED flashes, joint must not be replaced.

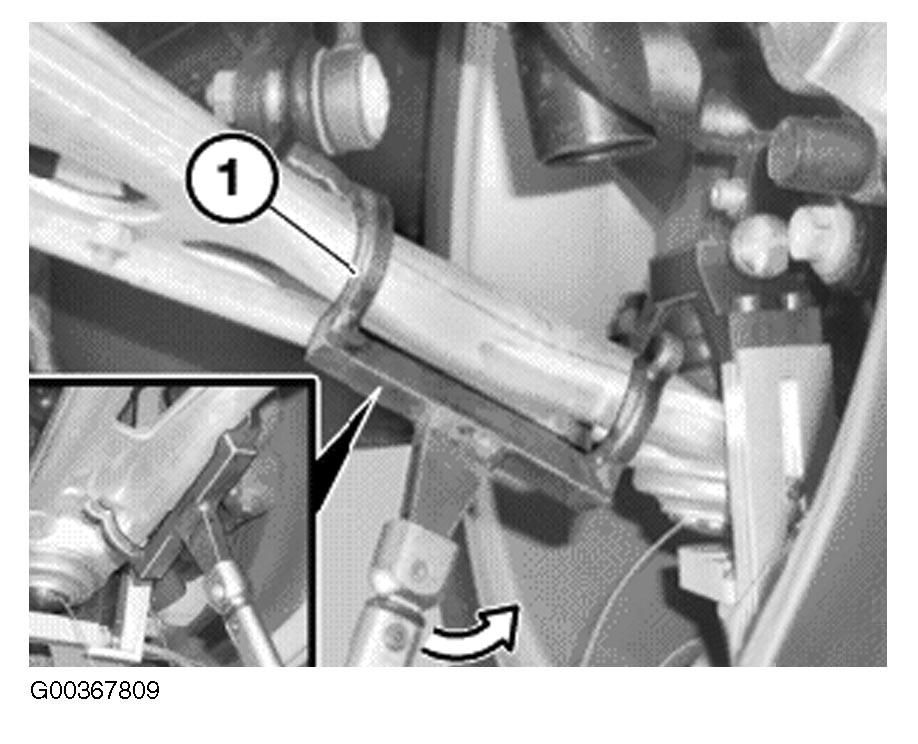

Fig 1: Second Check Of Wheel Control Joint Play
G00367809Courtesy of BMW OF NORTH AMERICA, INC.
