Wheel Control Joint Play: Preparation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position magnetic retainers (1) on housing cover of control arm (2). See Fig 2 . Make sure magnetic retainers are correctly seated in control arm.
  2. Fit measuring clip (1) on threaded stem (2) of joint and screw down with locating screw (3). See Fig 3 . Measuring clip must not contact control arm.
  3. Press evaluation electronics button. Device will perform a self-test. LEDs flash. Red LED illuminates permanently.
  4. Move sensor with slide upward until green LED illuminates. Gap (A) between sensor and magnetic retainer should be 5-7 mm. See Fig 4 . Secure slide with clamping screw (1).
  5. Press evaluation electronics button for about 2 seconds until green LED flashes. Device is now calibrated and ready for measuring. Go to FIRST CHECK  .
Fig 1: Identifying Special Tools For Measuring Play Of Wheel Control Joints
G00367804Courtesy of BMW OF NORTH AMERICA, INC.

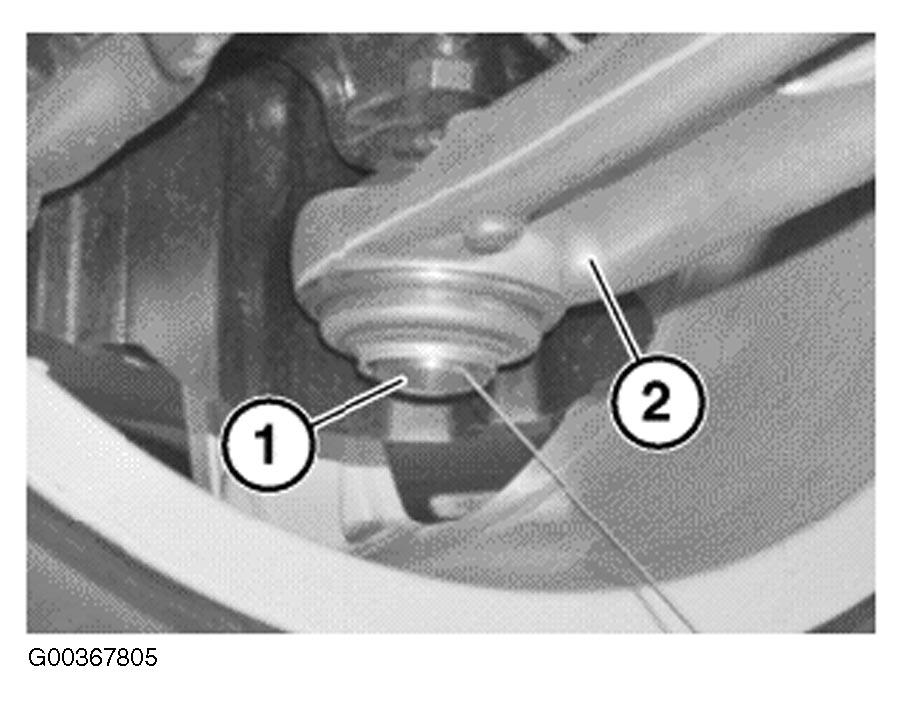

Fig 2: Positioning Magnetic Retainers
G00367805Courtesy of BMW OF NORTH AMERICA, INC.

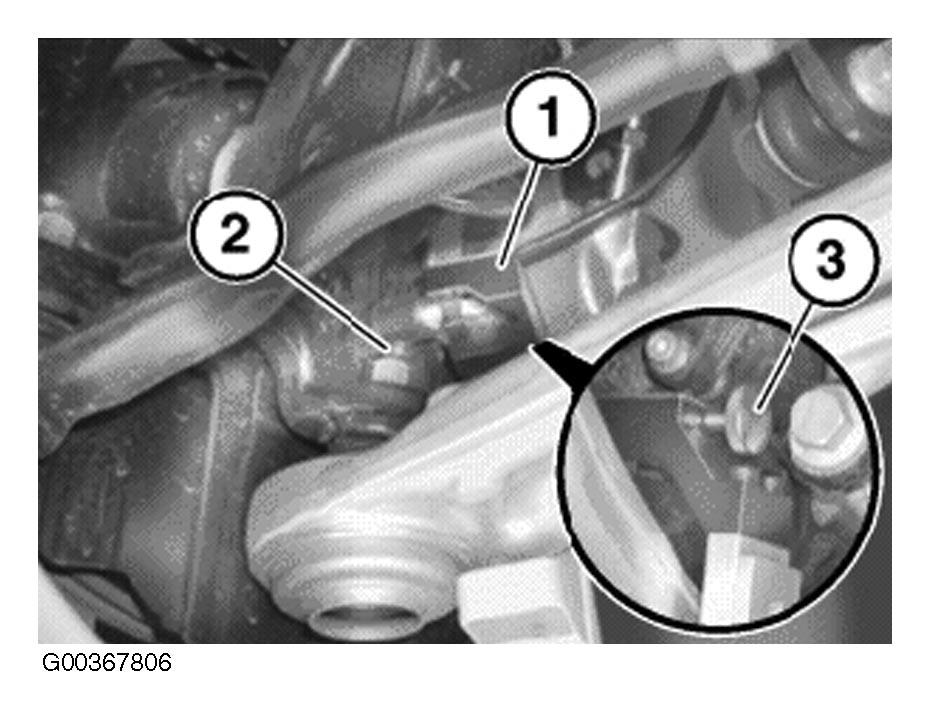

Fig 3: Fitting Measuring Clip
G00367806Courtesy of BMW OF NORTH AMERICA, INC.

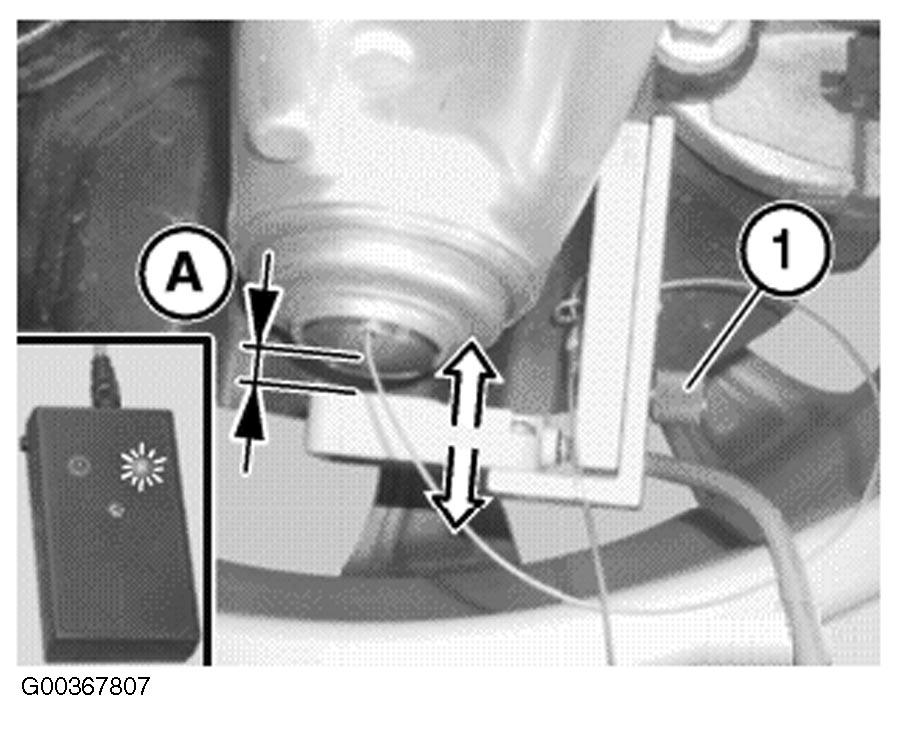

Fig 4: Securing Slide With Clamping Screw
G00367807Courtesy of BMW OF NORTH AMERICA, INC.
