Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive flange for rear axle shaft. See AXLE SHAFT DRIVE FLANGE under REMOVAL & INSTALLATION in AXLE SHAFTS article. Remove bolts. Remove wheel bearing. See Fig 1.
To install, reverse removal procedure. Keep tapped holes (1) and mating surfaces (2) of wheel bearing and wheel carrier clean and free from grease. See Fig 2. Use a new wheel bearing.

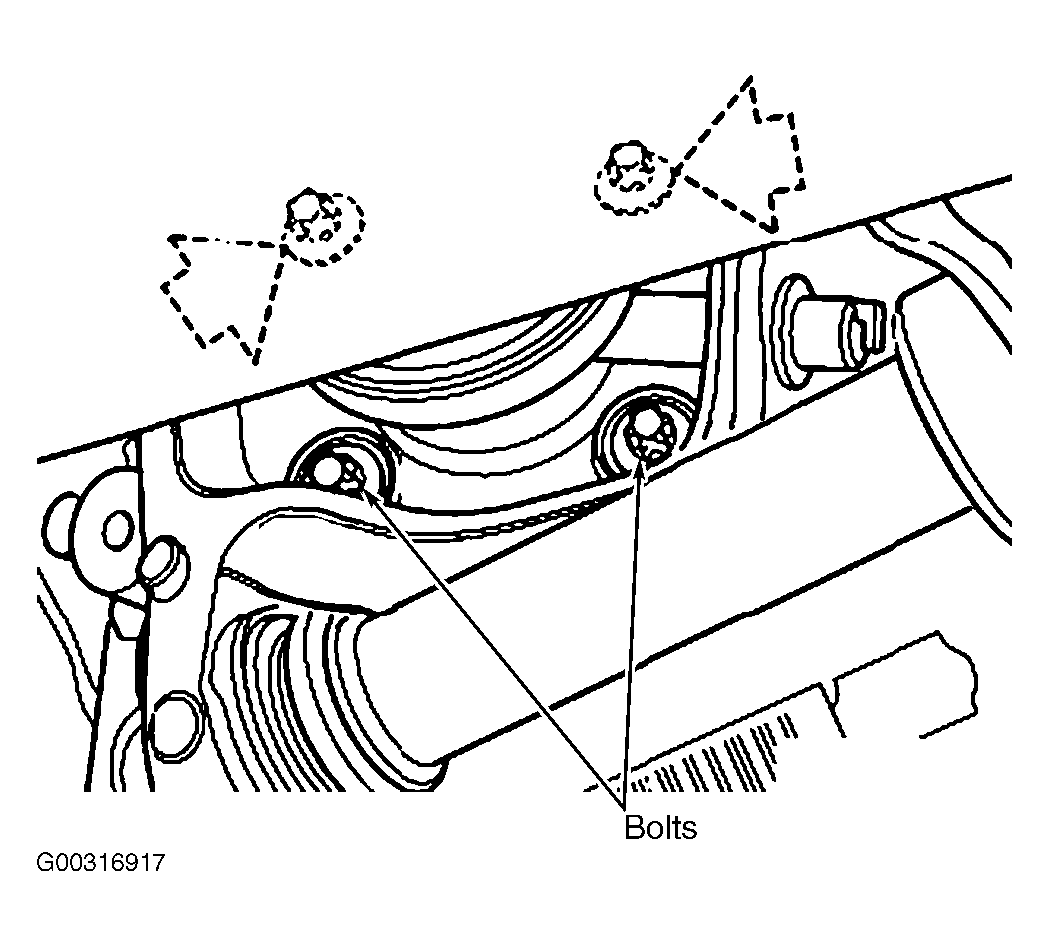

Fig 1: Removing Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

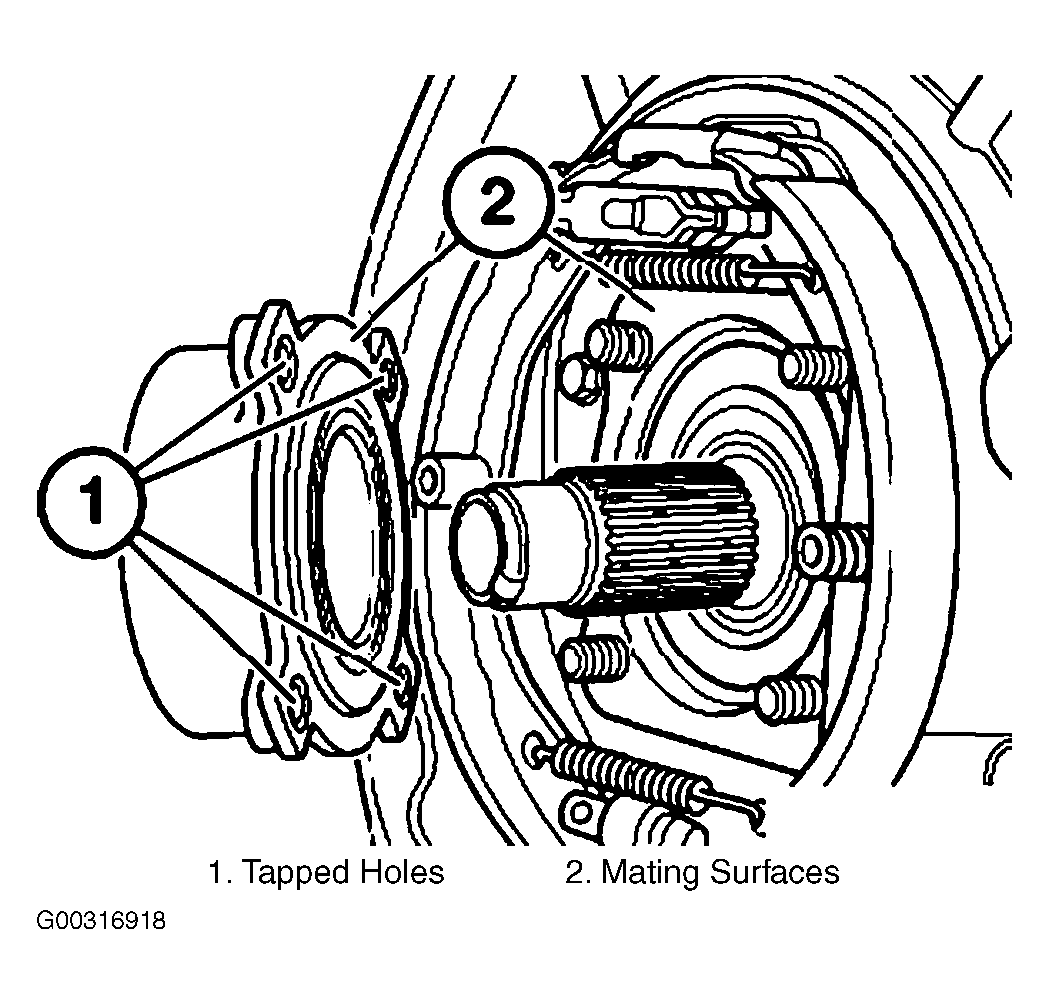

Fig 2: Identifying Tapped Holes & Mating Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.
