Removal & Installation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 550i, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove appropriate front wheel. Remove front underbody protection. If necessary, remove steering gear cover at side.
- Remove nuts (1, 2) and remove stabilizer link. See Figure. If necessary, grip ball joint with Torx Socket.
- Remove control arm on front axle carrier. See CONTROL ARM .
- Unscrew tension rod-to-front axle nuts (1). See Fig 1. Pull out screw (3). Remove ball joint nut (2). If necessary, hold ball joint at Torx socket to aid in removing nut.

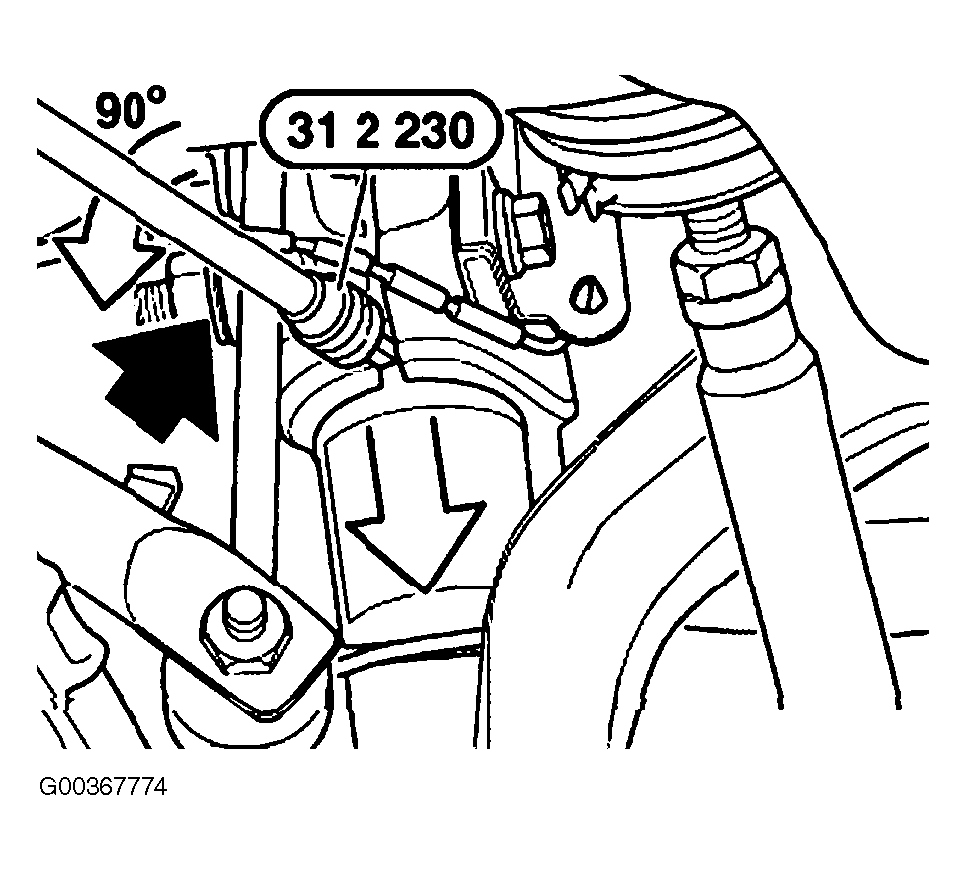

- Support swivel bearing with workshop jack. Remove nut of shock absorber-to-pivot mount. See Fig 2. Spread swivel bearing with Special Tool (31 2 230). Pull swivel bearing down about 2.5 cm. Locating pin on spring strut ends at top edge of clamp on swivel bearing. Remove tension strut from swivel bearing.
- Installation is reverse of removal. Ensure ball pin and bore are free of grease. Replace self-locking nuts. Tighten nuts to specification. See TORQUE SPECIFICATIONS .
