Removal & Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2007 BMW 550i, 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 550i, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wheel.
Release nuts (1). See Fig 1. Grip hexagon head if necessary. Remove guide arm from wheel carrier. Unscrew nut (1). Remove eccentric disc (2). See Fig 2. Pull out eccentric bolt (3). Remove guide arm.
To install, reverse removal procedure. Replace self-locking nuts. Ensure tapered pin and bore are free of grease. Note insertion direction of eccentric bolt (3). See Fig 2. Bolt head points in opposite direction to direction of travel. Tighten to specification. See TORQUE SPECIFICATIONS .

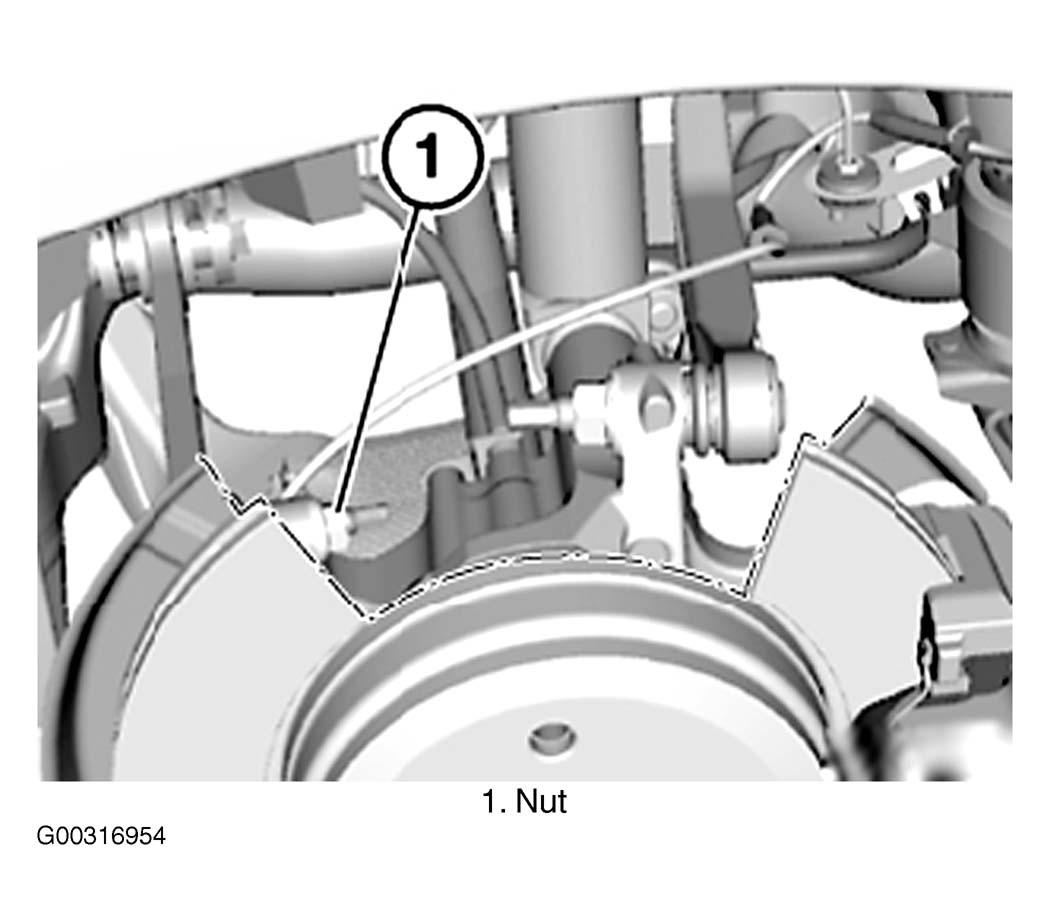

Fig 1: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

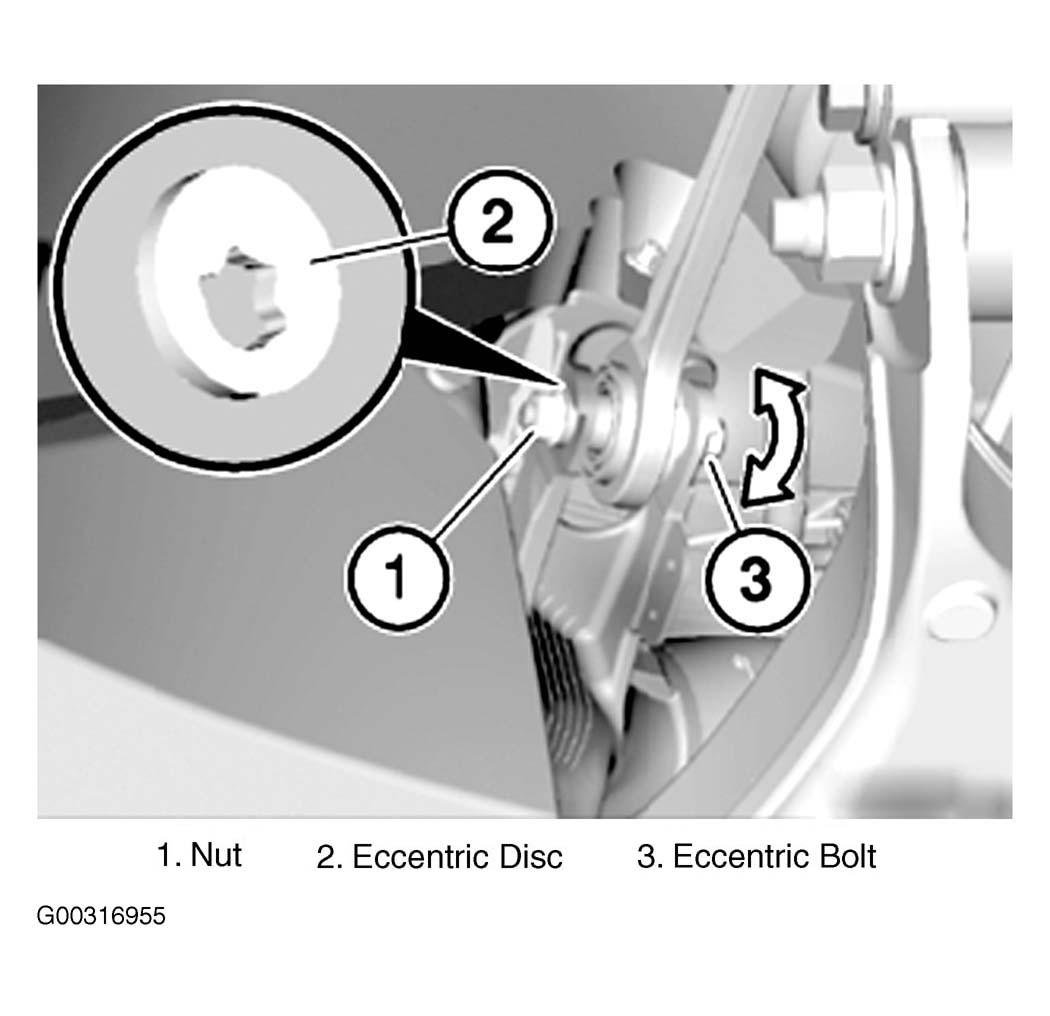

Fig 2: Removing Eccentric Disc

Courtesy of BMW OF NORTH AMERICA, INC.
