54 10 150 Removing and installing/replacing front floating roofliner

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass tilt sunroof lid.

IMPORTANT: Make sure that grease on the rails does not come into contact with the floating roofliner.

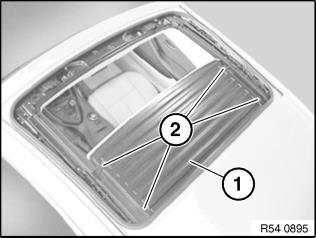

Open roofliner (1) to such an extent that screws (2) are still accessible. Loosen screws (2). Tightening torque, see 54 10 7AZ.in 10 GLASS TILT SUNROOF .

Fig 1: Open Roofliner (1) So Screws (2) Are Still Accessible

Courtesy of BMW OF NORTH AMERICA, INC.

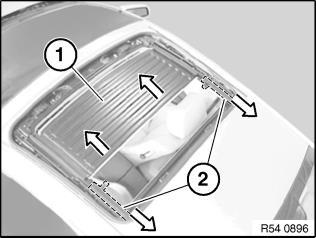

Slide roofliner (1) uniformly towards front. If necessary, raise slider (2) for roofliner. Move slider (2) back until there is no longer any contact with the roofliner.

Fig 2: Move Slider (2) Back Until There Is No Contact With Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

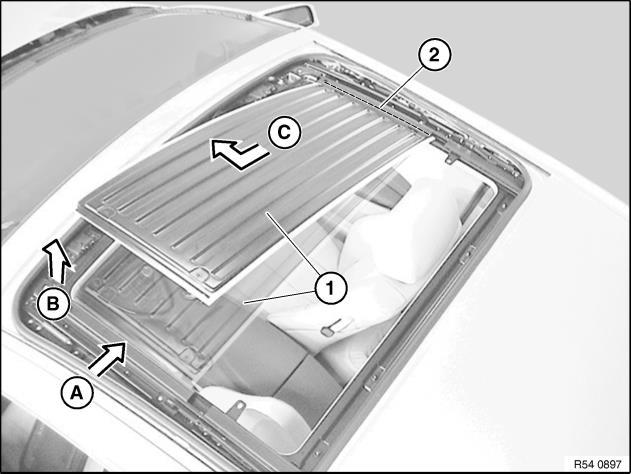

Remove floating roofliner (1) as follows

Press toward right into guide rail (2) of slider.
Raise.
Remove in direction of arrow.

Fig 3: Press Toward Right Into Guide Rail (2) Of Slider

Courtesy of BMW OF NORTH AMERICA, INC.
