Luggage Compartment

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

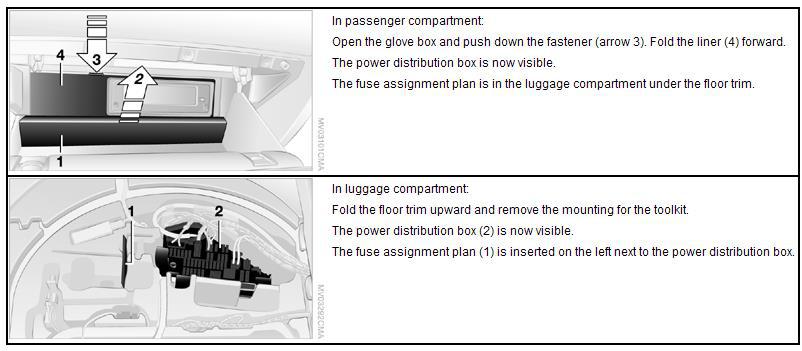

Rear fuse holder (A46) is located in luggage compartment. See Fig 1. To access fuse holder (A46), see Figure. For fuse identification, amperage and components covered, see Fig 2.

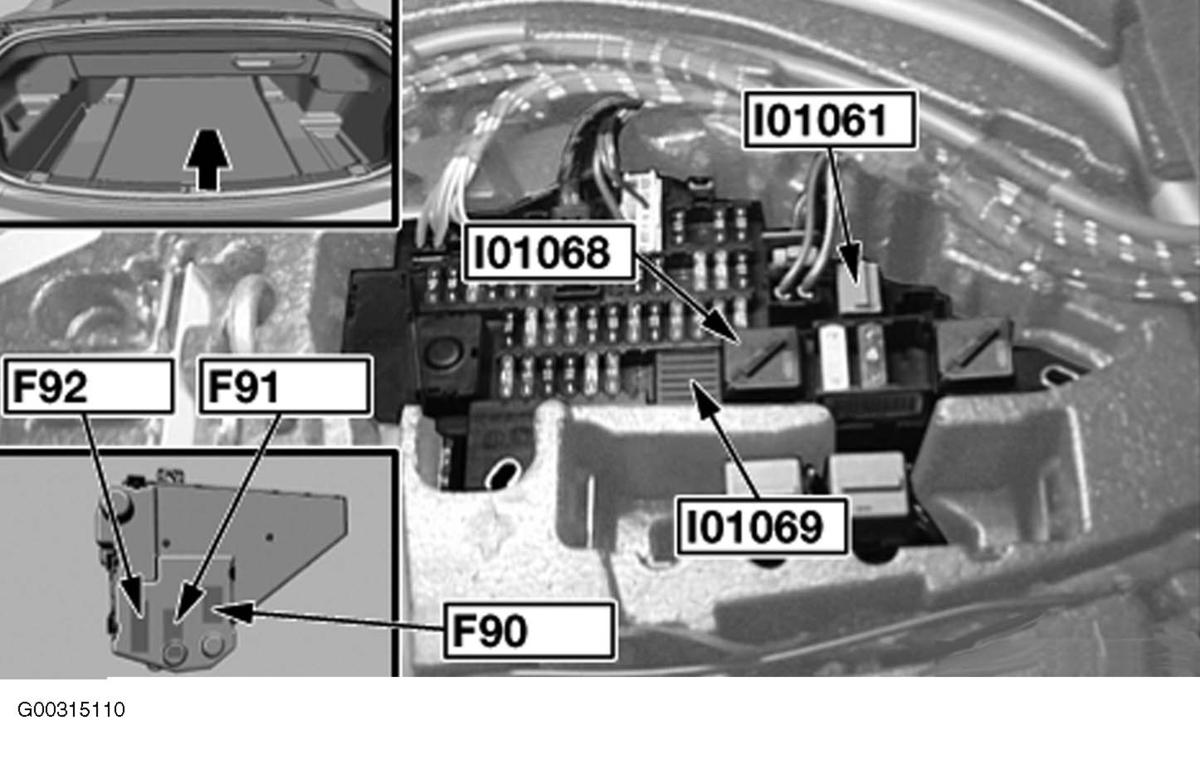

Fig 1: Locating Luggage Compartment Rear Fuse Holder (A46)

Courtesy of BMW OF NORTH AMERICA, INC.

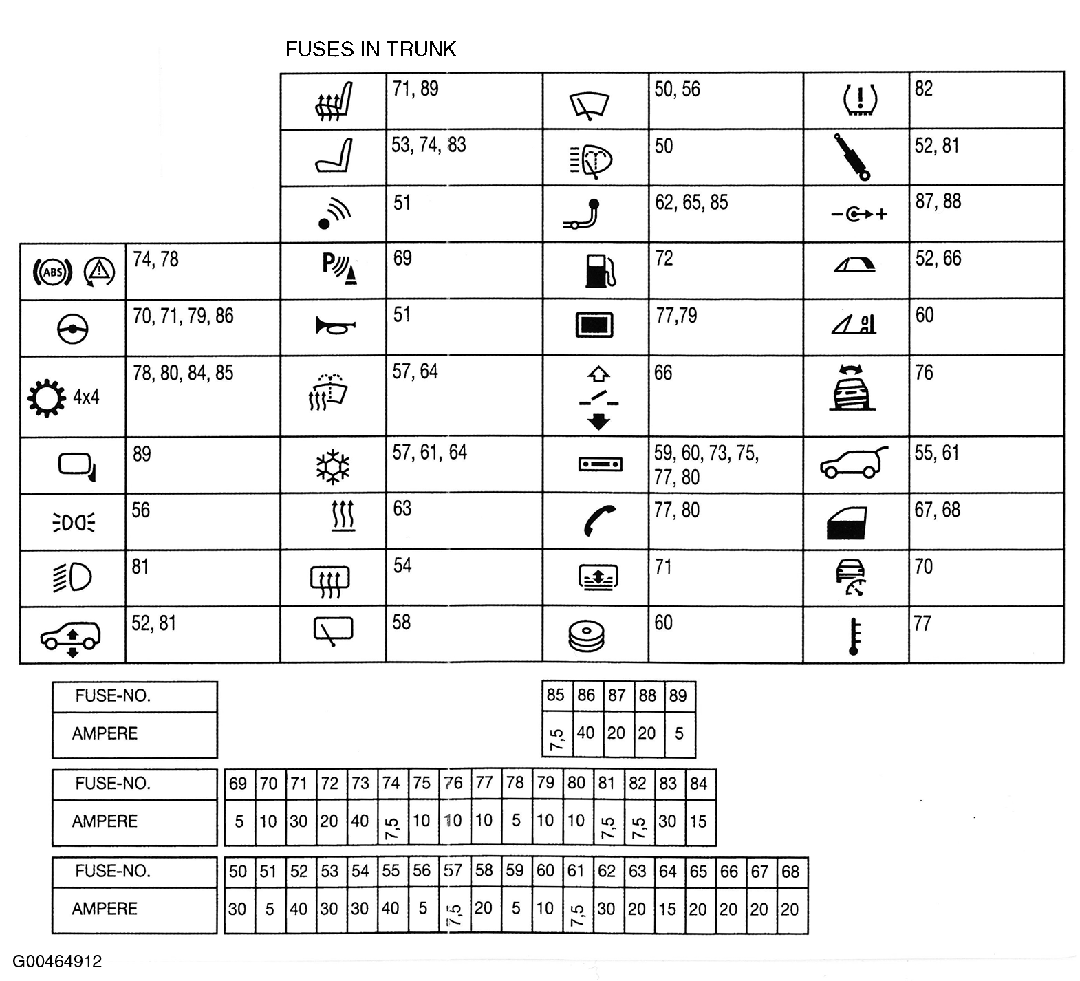

Fig 2: Identifying Fuses In Luggage Compartment Fuse Holder (A46)

Courtesy of BMW OF NORTH AMERICA, INC.

Rear fuse holder fuses F90-F92 protect the following:

F90: 200 Amp - Front fuse holder.
F91: 100 Amp - Integrated supply module, valve timing.
F92: 100 Amp - Electric auxiliary heater.
