Removal & Installation (Rear)
WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove wheel(s). Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from emerging from the expansion tank and air from entering the brake system after the brake lines have been detached.

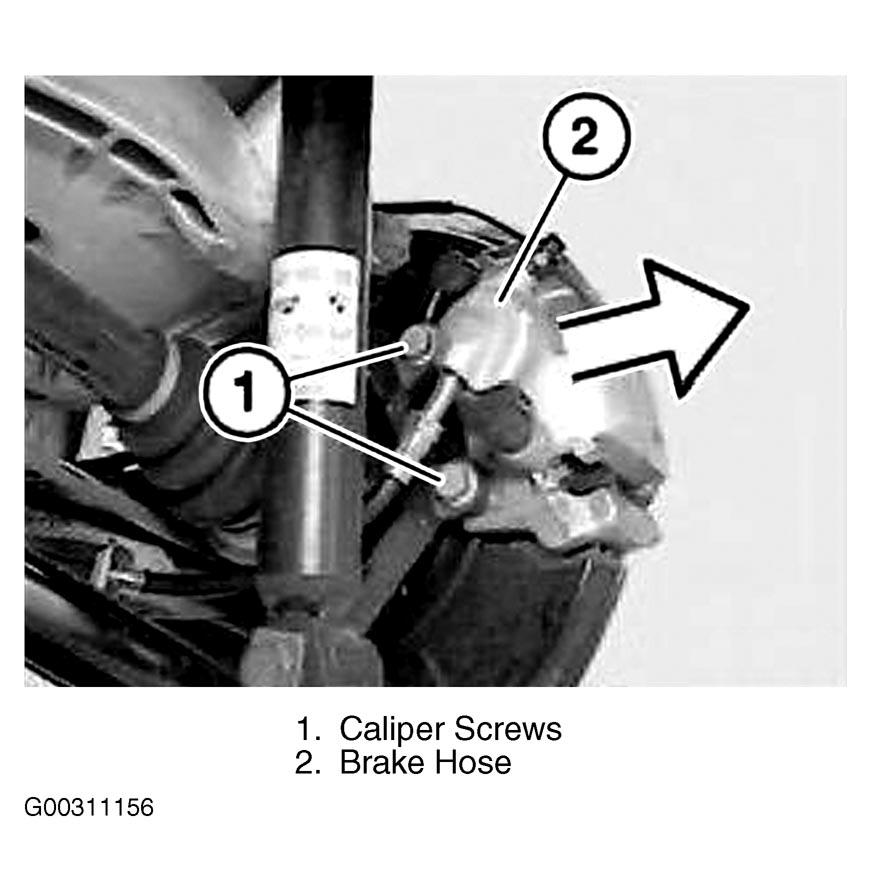

- Remove caliper screws (1). Disconnect brake hose (2). See Fig 1 . Unfasten brake hose on connection point to brake line. On right side, disconnect plug connection for brake pad lining sensor. Pull off caliper toward rear of vehicle.
- To install, reverse removal procedure. Install brake hose without torsional stress. First tighten the brake hose on the brake cover, then tighten connection on brake line to specification. See TORQUE SPECIFICATIONS . Check routing and securing of brake pad wear indicator cable. Check for correct securing with tab of dust cap. It is absolutely essential to prevent the cable on the rim from being scuffed.
