Removal & Installation (Rear)
WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

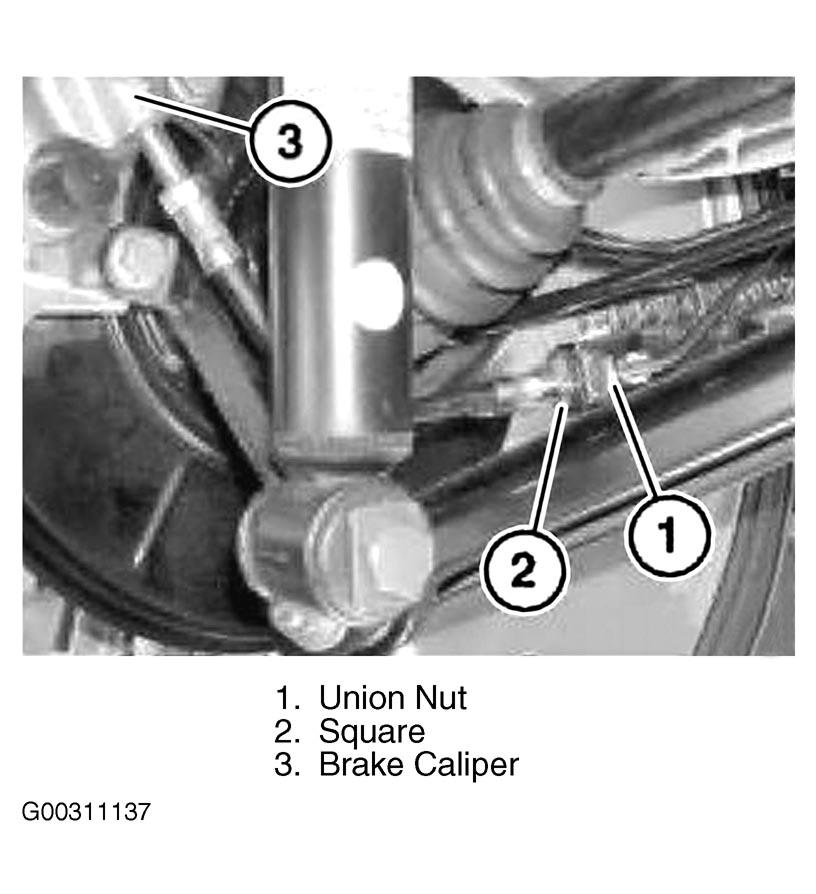

- Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened. Release union nut (1) by gripping brake hose at square (2). Disconnect brake hose from brake caliper (3). See Fig 1 .
- To install, reverse removal procedure. Mount and tighten brake hose on brake caliper first, then on brake line/brake hose point of connection. See TORQUE SPECIFICATIONS . After installation, bleed brake system. See BLEEDING BRAKE SYSTEM .
