Removal & Installation (Front)
WARNING: This page is about a different car, the 2004 BMW Z4 and 2003 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

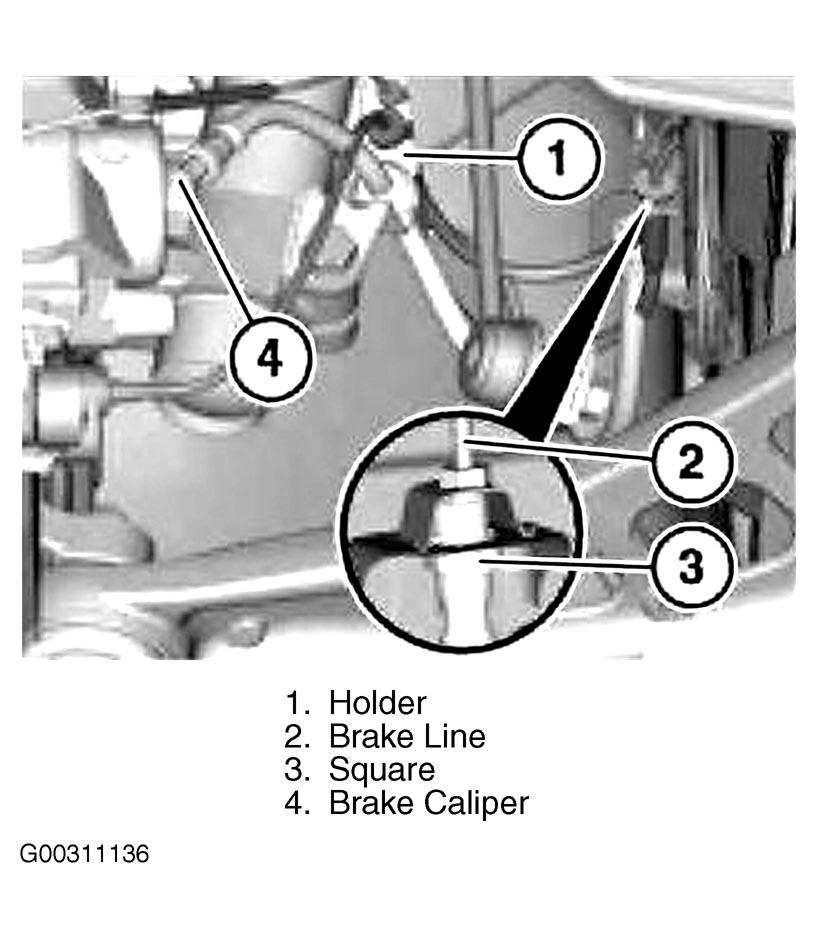

- Apply pedal prop and depress brake pedal slightly. This prevents brake fluid from emerging from the expansion tank when the brake lines are opened. Pull brake hose out of holder (1). Disconnect brake hose from brake line (2). Grip brake hose at square (3) to prevent connecting piece from turning in retaining bracket. Detach brake hose from brake caliper (4). See Fig 1 .
- To install, reverse removal procedure. First tighten brake hose on brake caliper. Move wheels into straight-ahead position. Insert brake hose in bracket and screw onto brake pipe. Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body. See TORQUE SPECIFICATIONS . After installation, bleed brake system. See BLEEDING BRAKE SYSTEM .
