24 11 010 Removing And Installing/Sealing Or Replacing Transmission Sump (GA6HP26Z/6HP32Z)

WARNING: This page is about a different car, the 2007 BMW 550i and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Remove transmission sump only after it has cooled down.

After completion of work, check TRANSMISSION OIL LEVEL .

Use only the approved transmission fluid.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

E65 only:

Unfasten screws.

Remove transmission underguard (1).

E60/ E63/ E64 only:

Remove rear underbody protection.

Remove cross-member from exhaust system on transmission (N62 only).

Fig 1: Locating Transmission Screw

Courtesy of BMW OF NORTH AMERICA, INC.

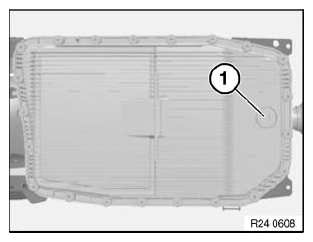

Remove oil drain plug (1).

Tightening torque: 24 11 6AZ . See TRANSMISSION HOUSING, TRANSMISSION OIL SUMP for specs.

Drain automatic transmission fluid.

Installation:

Replace oil drain plug.

Fig 2: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping transmission fluid.

Observe country-specific waste-disposal regulations.

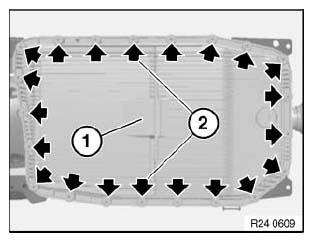

Unscrew all bolts.

BMW ALPINA B7 version.

Aluminium transmission sump with extending cooling fins.

Remove transmission sump (1).

IMPORTANT:

GA6HP26Z plastic oil sump version only.

From 10/04 new M6x28.5 T40 Torx bolt can be retrospectively replaced.

Fig 3: Locating Transmission Sump With Extending Cooling Fins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert screws (2) until screw heads make contact.

Insert all further screws in diagonal sequence from inside to outside until screw heads make contact.

Tightening torque: 24 11 5AZ . See TRANSMISSION HOUSING, TRANSMISSION OIL SUMP for specs.

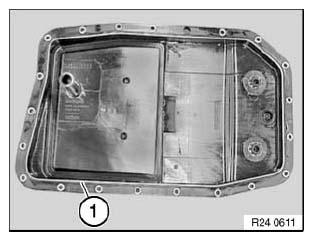

Remove gasket (1) from transmission sump.

Clean transmission oil sump to remove residual oil.

Clean sealing faces and groove with a cloth.

Insert new gasket in transmission sump groove.

IMPORTANT:

Do not degrease transmission sump with cleaning agent.

Fig 4: Identifying Transmission Sump Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring (1) on oil filter tube.

Fig 5: Identifying Sealing Ring On Oil Filter Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

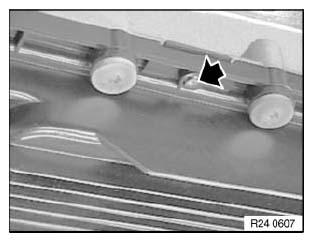

The gasket is correctly installed when it is engaged in the locating opening of the transmission sump.

Fig 6: Locating Transmission Sump

Courtesy of BMW OF NORTH AMERICA, INC.
