66 12 100 Removing and installing/replacing slide-in unit for radio-operated key

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove fixture for steering column stalks. See 61 31 006 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN STALK (FROM 09/2005) .

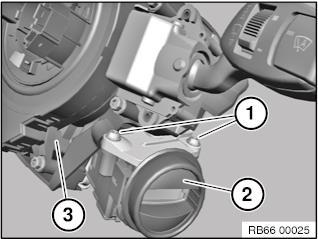

Release screws (1). Remove the radio-operated key insert (2) from the steering column switch intake (3).

Fig 1: Remove Radio-Operated Key Insert From Steering Column Switch Intake

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carefully unlock and disconnect associated plug connection for ribbon cable. Replace the ribbon cable if damaged.
