63 31 182 Replacing LED For Front Inside Door Opener
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove door trim panel . See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

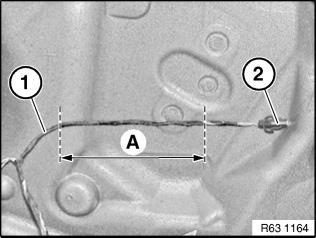

Remove sheathing of wiring harness (1) in area (A). Cut through wiring harness (1) in area (A) and remove LED for door opener (2).
Installation: Adapt length of wiring harness of new LED for door opener. Connect wiring harness of new LED for door opener using butt connectors to wiring harness (1).
Wrap wiring harness (1) in insulating tape.
