63 21 183 Removing and installing/replacing left or right rear light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim. See 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

Build date up to 09/2007:

Unfasten plug connection (1) and disconnect.

Release screws (2).

Feed rear light (3) in direction of arrow out of bumper trim (4) and remove.

Fig 1: Identifying Rear Bumper Trim Light Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Plastic lugs (1) must not be damaged.

Make sure electrical leads (2) are correctly routed.

Fig 2: Identifying Plastic Lugs And Electrical Leads

Courtesy of BMW OF NORTH AMERICA, INC.

Build date after 09/2007:

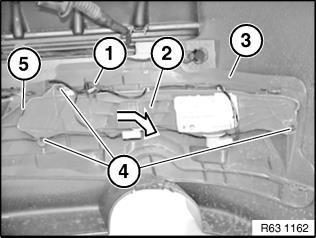

Disconnect plug connection (1). Release screws (4). Tightening torque 1.5 Nm. Unlock retaining lug (5) and rear light (2) in direction of arrow from bumper trim (3).

Installation: Retaining lug (5) must not be damaged or missing. Make sure wiring harness is correctly laid.

Fig 3: Removing Rear Light (Build Date After 09/2007)

Courtesy of BMW OF NORTH AMERICA, INC.
