52 14 ... Removing and installing/replacing front left or right crash-active head

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt pretensioners. Incorrect handling may result in triggering of the crash-active head and thereby cause injury.

Switch off ignition!

Necessary preliminary tasks:

Disconnect battery negative lead
Remove rear panel

Unfasten plug connection (1) and disconnect. Feed wiring harness out of backrest frame Lift out head restraint.

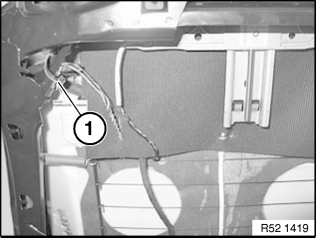

Fig 1: Unfasten Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

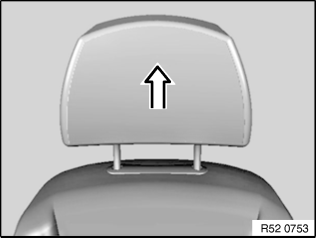

Fig 2: Lift Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
