51 14 110 Removing and installing/replacing rear model designation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The " Instructions for number/letter combination cementing "
serve as the basis for these repair instructions and must be followed without fail.

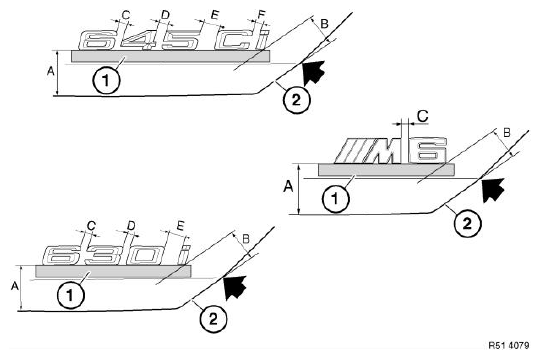

Fitting dimensions (E63, E64):
Stick on adhesive tape (1) up to top edge "A". Mark measurement "B" from edge of rear lid (2) on adhesive tape (1).
Dimensions:
E63, E64 (without M6) A = 50 mm B = 36 mm
M6 A = 45 mm B = 54 mm
NOTE:
Measurements C, D, E and F are for information purposes only, as determined by carrier film.
630 i, 650 i: C = 6 mm, D = 7.0 mm, E = 22 mm
645 Ci: C = 7.5 mm, D = 11 mm, E = 20 mm, F = 7.5 mm
M6: C = 7.5 mm
630 i, 650 i: C = 6 mm, D = 7.0 mm, E = 22 mm
645 Ci: C = 7.5 mm, D = 11 mm, E = 20 mm, F = 7.5 mm
M6: C = 7.5 mm
