51 12 157 Replacing rear bumper trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim

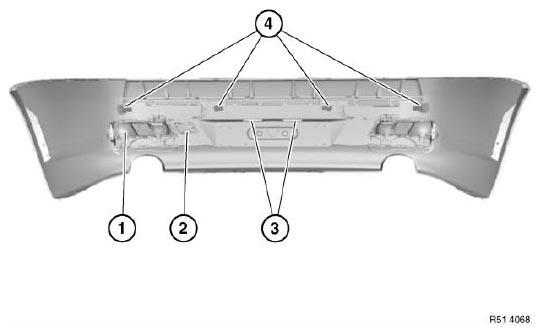

Fig 1: Identifying Rear Bumper Trim Components
Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear light in bumper (1)
Remove cover cap (2) for tow lug.
Remove number/license plate light (3)

Version with PDC:

Remove all ultrasonic transducers (4) . See 66 20 540 REMOVING AND INSTALLING/REPLACING A REAR ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) .

US/CND national-market version:

Remove baseplate for number/license plate
