51 12 ... Removing and installing / replacing locking part for rear bumper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim (M6) .

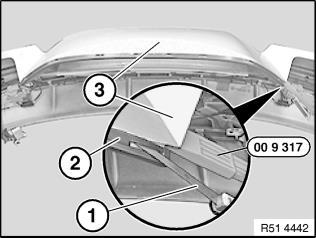

Using a 0.4 mm feeler gauge (1), press down catch onto bumper trim (3) and snap out locking part (2) with special tool 00 9 317.

Fig 1: Snap Out Locking Part (2) With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

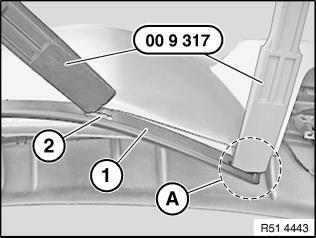

Press off locking part (1) slightly in area (A) with special tool 00 9 317. Release all further catches (2) with special tool 00 9 317. Remove locking part (1).

Fig 2: Removing Locking Part

Courtesy of BMW OF NORTH AMERICA, INC.
