51 11 156 Removing and installing front bumper trim (M6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of mixing up Different screws fitted.

Raise bonnet/hood. Release screws (1) on bumper trim (2).

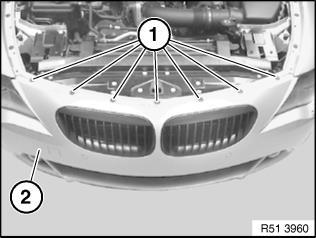

Fig 1: Release Screws (1) On Top Of Bumper Trim (2)

G00497544

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2).

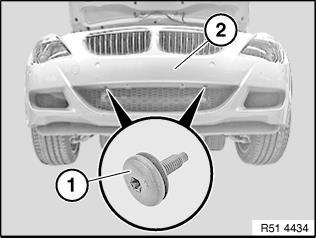

Fig 2: Release Screws (1) Under Bumper Trim (2)

G00497545

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1) on wheel arch trim (2).

Fig 3: Release Screws (1) On Wheel Arch Trim (2)

G00497546

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid damage, unclip the bumper trim (1) in direction of travel.

Pull bumper trim (1) in direction of arrow off side guide.

Fig 4: Pull Bumper Trim (1) In Direction Of Arrow Off Side Guide

G00497547

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Have a rubber plug on hand.

Pull bumper trim slightly towards front (with aid of a 2nd person). Unlock hose (1), detach and seal pump outlet (2).

Fig 5: Unlock Hose (1), Detach And Seal Pump Outlet (2)

G00497548

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection (3) at cable for ultrasonic transducer. Remove bumper trim (1) towards front (with aid of a 2nd person).

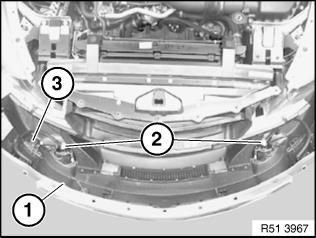

Fig 6: Remove Bumper Trim (1) Towards Front

G00497550

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Tabs (1) on bumper trim (2) must not be damaged.
