37 15 055 Removing and installing/replacing EDC control unit (M model)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove trim for instrument panel, bottom left.
- Remove footwell side trim panel on A-pillar, right.

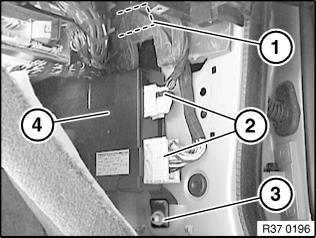

Press floor trim at front right to one side. Open cutout in insulating mat (shown with dotted line) and release nut (1). Disconnect plug connections (2). Unscrew nut (3). Slide control unit (4) with bracket upwards and remove sideways.
Replacement only: Remove control unit (4) from bracket.
