37 14 017 Removing and installing/replacing front mounted acceleration sensor (M model)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove front wheel
- Partially detach front wheel arch cover (in rear area). See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

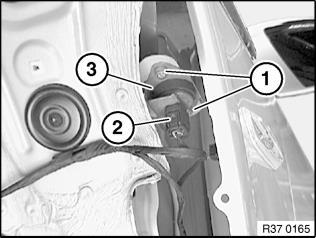

Release screws (1). Disconnect plug connection (2). Remove front mounted acceleration sensor (3).
