34 52 550 Removing and installing/replacing DSC sensor (S85)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
. See 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
Necessary preliminary tasks:
- Remove right front seat. See 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
- Remove front inner entrance cover strip. See 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

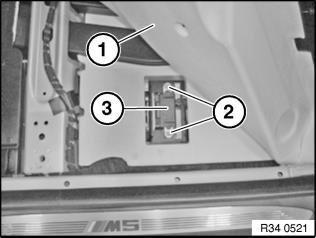

Lift carpet (1) and fold to side. Release screws (2) and swing out DSC sensor (3). Installation: Tightening torque, see 34 51 3AZ in 34 51 SLIP CONTROL SYSTEM (ABS, ASC+T, DSC) .
Unlock plug connection (1) and remove DSC sensor (2). Installation: Make sure plug connection locks correctly.
