33 17 004 Replacing all rubber mounts for rear differential mountings at front (M6)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 3 312
33 4 161
33 4 162
33 4 466
33 4 465

Necessary preliminary tasks:

Remove Rear Differential

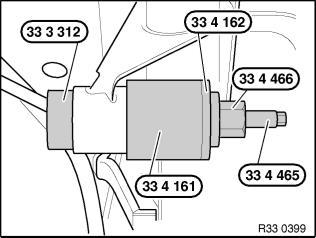

Withdraw rubber mount with special tools 33 3 312, 33 4 161, 33 4 162, 33 4 466 and 33 4 465.

Fig 1: Withdraw Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Milled recess of special tool 33 4 161 must point upwards to rear axle carrier.

IMPORTANT: Coat bearing bushing in rear axle carrier and rubber mount with Circolight

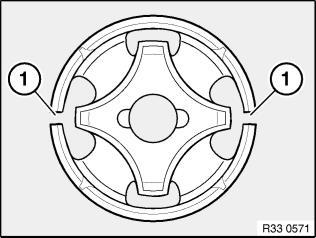

Align rubber mount by way of slots (1) to vehicle transversal direction.

Fig 2: Align Rubber Mount By Way Of Slots (1) To Vehicle Transversal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount with special tools 33 4 465, 33 4 466, 33 4 166 and 33 4 461 as far as it will go.

Fig 3: Draw In Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
