11 6 250 Lever Gauge (Puppitast)
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
NOTE:
With small stand for measuring tooth backlash and axial clearance at balancing shafts, camshafts and crankshafts.
Engine: M43TU, M47T2, M57T2, M67TU, S85
SI number: 1 04 98(304)
Order number: 11 6 250

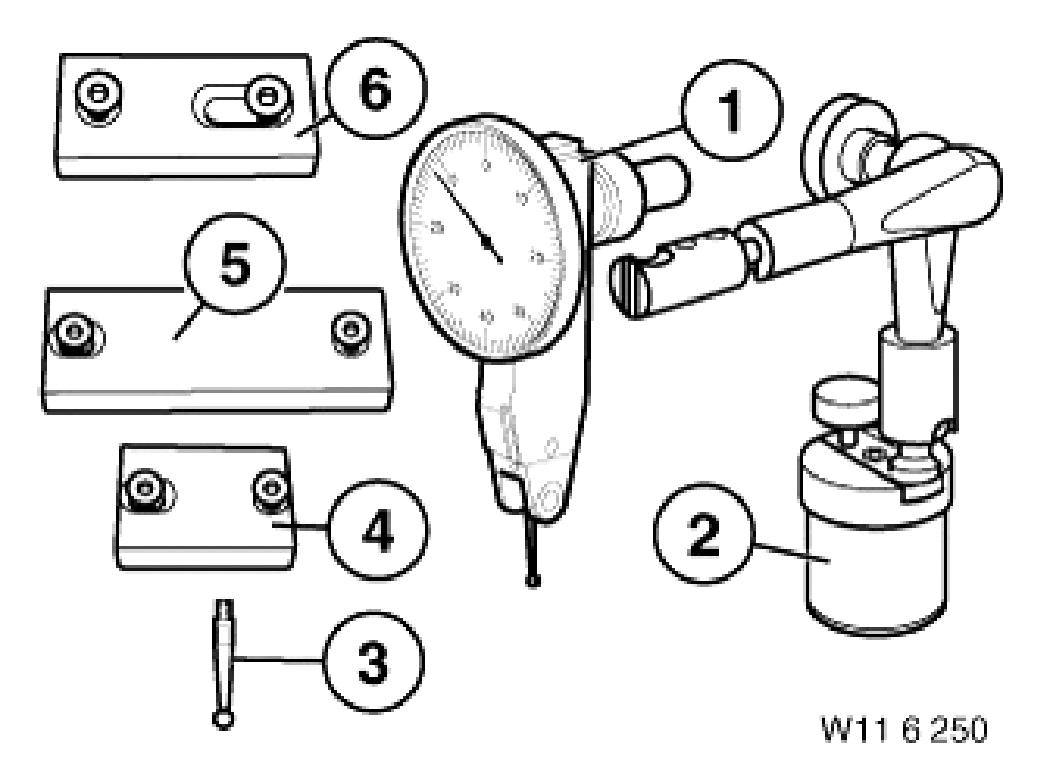

Lever gauge (Puppitast)
Consisting of:
1 = 11 6 251 Lever gauge
NOTE:
With 0.8 mm measuring range in each direction
2 = 11 6 252 Hydraulic small stand with magnetic foot
4 = 11 6 254 Support plate
NOTE:
Engine: M47T2" M57T2" S85
