11 5 380 Gauge

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For VANOS basic setting.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 380

Gauge

Consisting of:

1 = 11 5 381 Gauge, cylinders 1-5

2 = 11 5 382 Gauge, cylinders 6-10

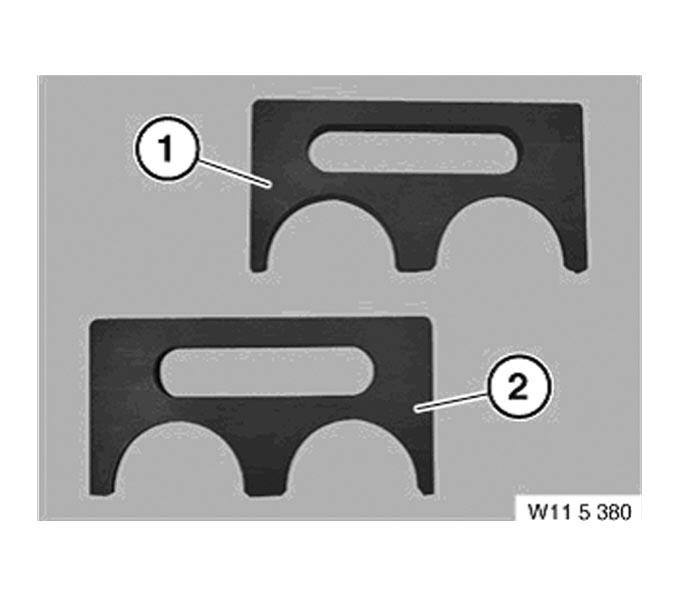

Fig 1: Identifying VANOS Gauge (11 5 380)

Courtesy of BMW OF NORTH AMERICA, INC.
