11 5 360 Adapter

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For VANOS oil pressure measurement.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 360

Adapter

Consisting of:

1 = 11 5 361 Banjo bolt with ring connection

2 = 11 5 362 Set of screw plugs (2 x)

3 = 11 5 363 Set of cap nuts (2 x)

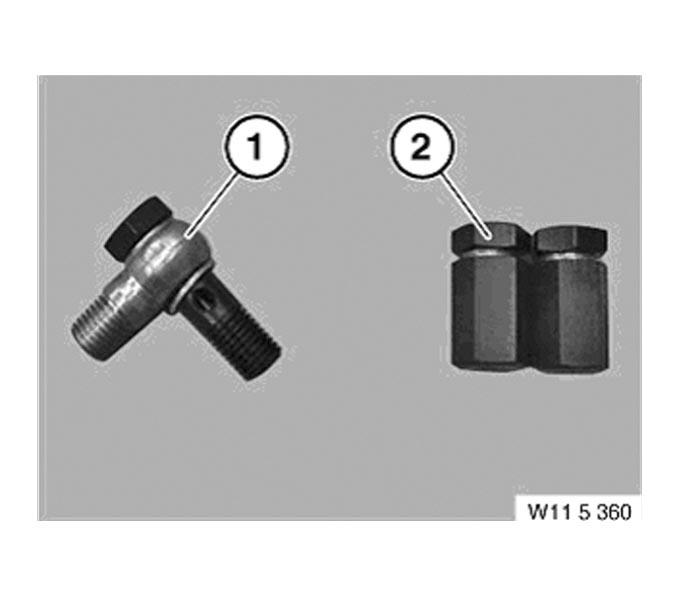

Fig 1: Identifying Oil Pressure Adapter Set (11 5 360)

Courtesy of BMW OF NORTH AMERICA, INC.
