11 5 350 Retaining Fixture

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For holding and pretensioning timing chains.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 350

Retaining fixture

Consisting of:

1 = 11 5 351 Retaining fixture, cylinders 1-5

2 = 11 5 352 Retaining fixture, cylinders 6-10

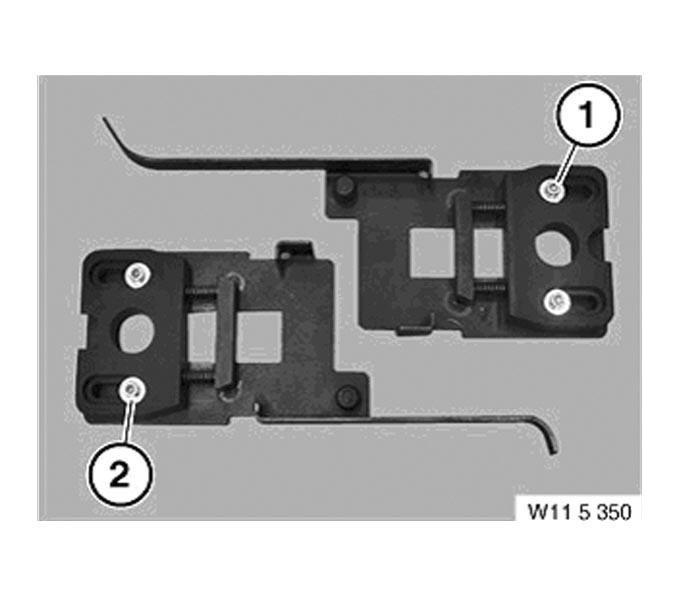

Fig 1: Identifying Timing Chain Retainer (11 5 350)

Courtesy of BMW OF NORTH AMERICA, INC.
