11 5 340 Removal/Installation Kit

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 4 492

NOTE:

For removing and installing piston pin retaining rings

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 340

Removal/installation kit

Consisting of:

1 = 11 5 341 Mounting holder

2 = 11 5 342 Set of guide pins (2 x)

3 = 11 5 343 Mounting pliers

4 = 11 5 344 Drift

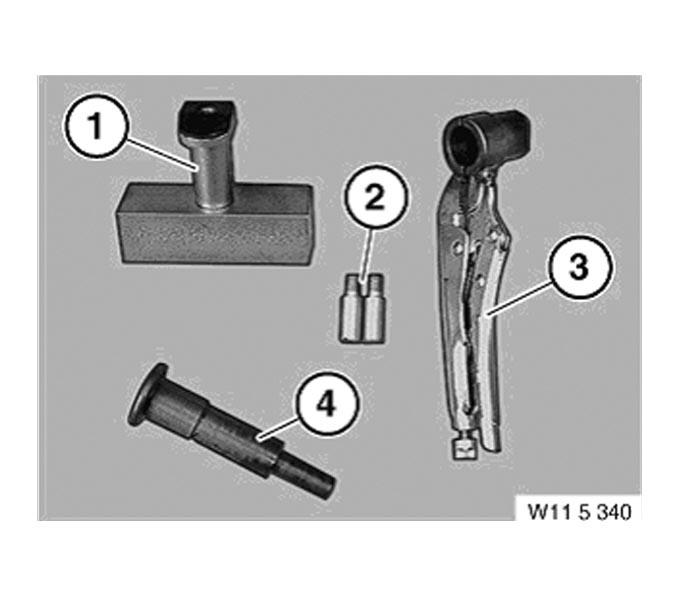

Fig 1: Identifying Removal/Installation Kit (11 5 340)

Courtesy of BMW OF NORTH AMERICA, INC.
