11 5 310 Installer

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

NOTE:

For installing rear shaft seal on crankshaft.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 310

Installer

Consisting of:

1 = 11 5 311 Basic body

2 = 11 5 312 Thrust sleeve

3 = 11 5 313 Nut with bearing

4 = 11 5 314 Set of screws (3 x)

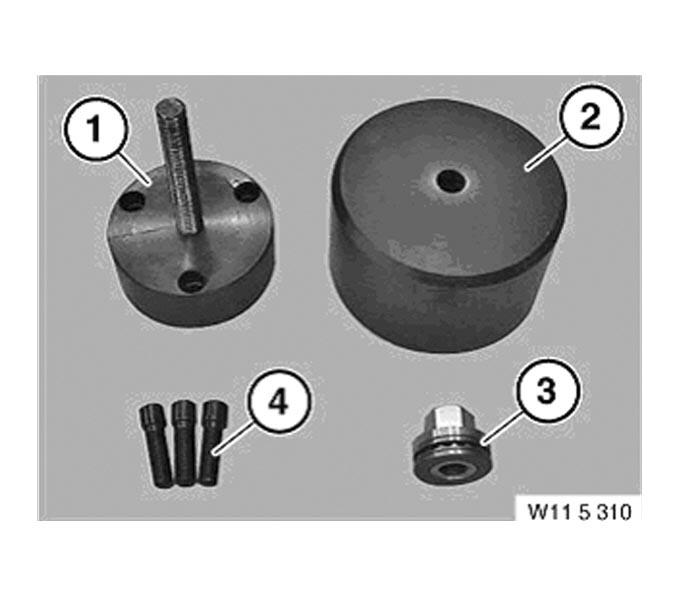

Fig 1: Identifying Rear Seal Puller (11 5 310)

Courtesy of BMW OF NORTH AMERICA, INC.
