11 5 280 Valve Spring Basket

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 9 000

NOTE:

For removing and installing valves.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 280

Valve spring basket

Consisting of:

1 = 11 5 281 Removal tool

2 = 11 5 282 Installation tool

3 = 11 5 283 Installation aid

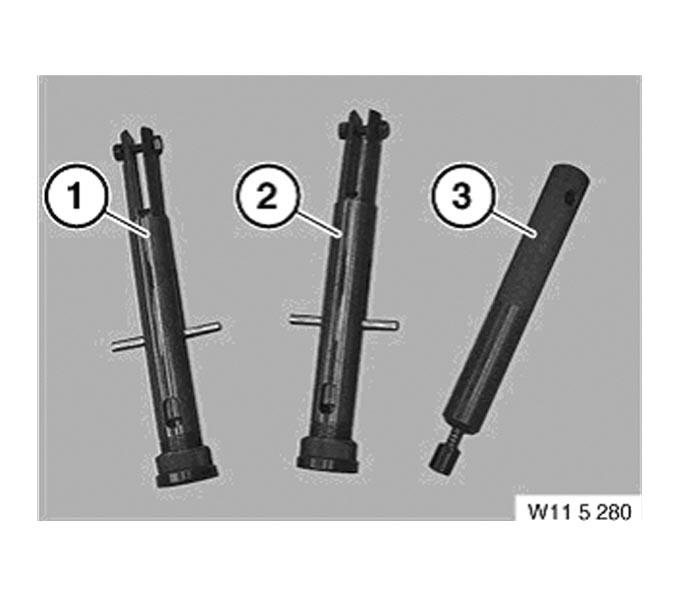

Fig 1: Identifying Valve Spring Basket (11 5 280)

Courtesy of BMW OF NORTH AMERICA, INC.
