11 5 260 Engine support plate

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 300

NOTE:

For accommodating engine on assembly stand.

Engine: S65, S85

SI number: 1 02 05 (173)

Order number: 11 5 260

Engine support plate

Consisting of:

1 = 11 5 261 Basic body

2 = 11 5 262 Set of screws (10 x)

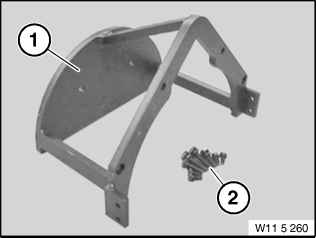

Fig 1: Identifying Engine Support Plate (11 5 260)

Courtesy of BMW OF NORTH AMERICA, INC.
