11 5 250 Guide Mandrels (2)

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For installing and removing connecting rods with pistons.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 250

Guide mandrels (2)

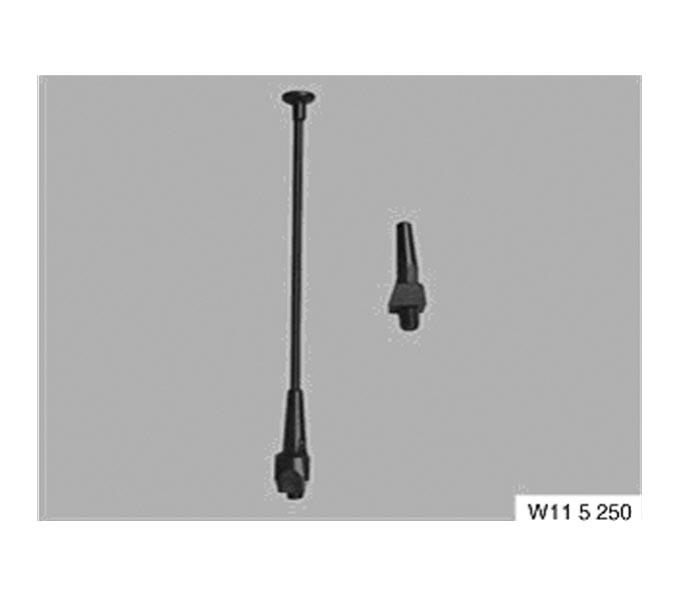

Fig 1: Identifying Guide Mandrels (11 5 250)

Courtesy of BMW OF NORTH AMERICA, INC.
