11 5 240 Press-Down Device

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

For pressing down camshafts during removal and installation.

Engine: S85

SI number: 1 02 05 (173)

Order number: 11 5 240

Press-down device

Consisting of:

1 = 11 5 241 Basic body

2 = 11 5 242 Set of screws (2 x)

3 = 11 5 243 Set of adapters

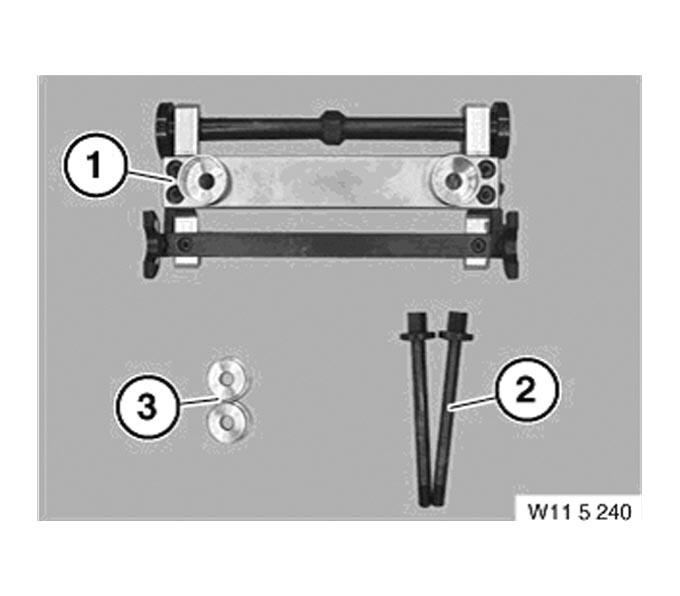

Fig 1: Identifying Camshaft Press (11 5 240)
G04226347Courtesy of BMW OF NORTH AMERICA, INC.
