11 5 230 Pressure-Testing Fixture
WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2010 BMW M6, 2010 BMW M5, 2009 BMW M6, 2009 BMW M5, and 2009 BMW 650i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For testing cylinder heads for leaks.
Engine: S85
SI number: 1 02 05 (173)
Order number: 11 5 230

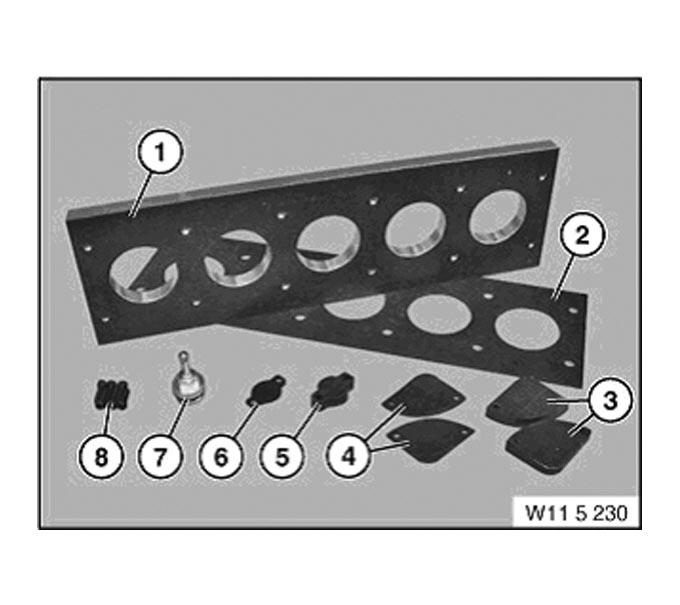

Pressure-testing fixture
Consisting of:
1 = 11 5 231 Base plate with seal
2 = 11 5 232 Seal for base plate
3 = 11 5 233 Adapter plate with seals
4 = 11 5 234 Seals for adapter plate
5 = 11 5 235 Adapter plate with seal
6 = 11 5 236 Seal for adapter plate
7 = 11 5 237 Set of screws (4 x)
